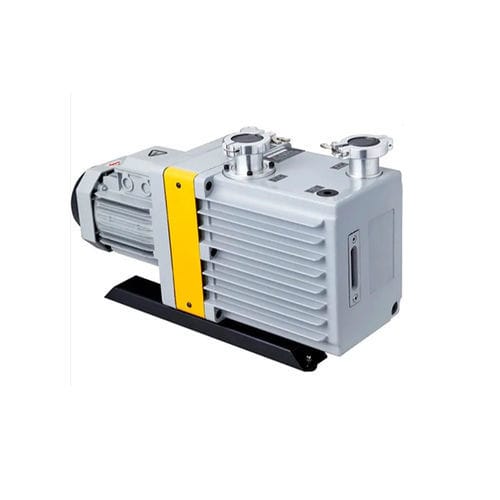

Rotary vane vacuum pump MVD-016oil-lubricatedtwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-lubricated
- Number of stages
- two-stage
- Ultimate vacuum
0.01 mbar
(0 psi)- Flow rate
17.4 m³/h, 144 m³/h
(614.48 ft³/h, 5,085.31 ft³/h)- Power
0.55 kW
(0.75 hp)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Length
478 mm
(19 in)- Width
160 mm
(6.3 in)- Height
248 mm
(9.76 in)- Noise level
51 dB, 53 dB
- Weight
27 kg
(59.52 lb)
Description
This oil-lubricated, two-stage rotary vane pump is built to produce a fine vacuum range.
It is an excellent choice for the research field as well as in production lines.
Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam.
