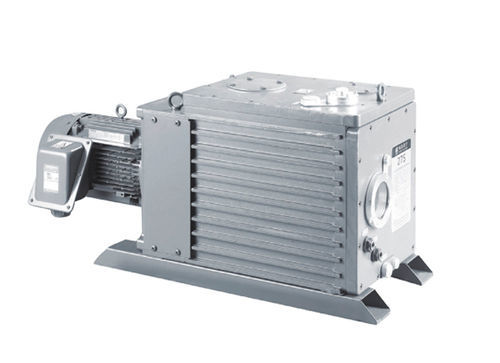

Rotary vane vacuum pump MVD-175

oil-lubricatedtwo-stagefor mass spectrometry

This oil-lubricated, two-stage rotary vane pump is built to produce a fine vacuum range. It is an excellent choice for the research field as well as in production lines. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. Applications: - Backing pump for high vacuum pumps - Leak detector - Mass spectroscopy - Glovebox - Electron microscopes - Lyophilisation - Filtration - Analytical instruments - Coating equipment - Plasma applications Technical Specifications: - Flow rate: 160 m³/h (50 Hz), 196 m³/h (60 Hz) - Ultimate partial pressure: 10⁻⁴ mbar - Ultimate total pressure: 5x10⁻³ mbar - Motor power: 5.5 kW - Nominal motor speed: 1.45 rpm (50 Hz), 1.74 rpm (60 Hz) - Water vapour tolerance: 40 mbar - Noise level: 64 dB(A) (50 Hz), 68 dB(A) (60 Hz) - Oil tank capacity: 25 L - Weight: 230 kg - Permissible ambient temperature: 5-40 ºC - Gas inlet/outlet: VG80 DN, 3" G (BSP)
