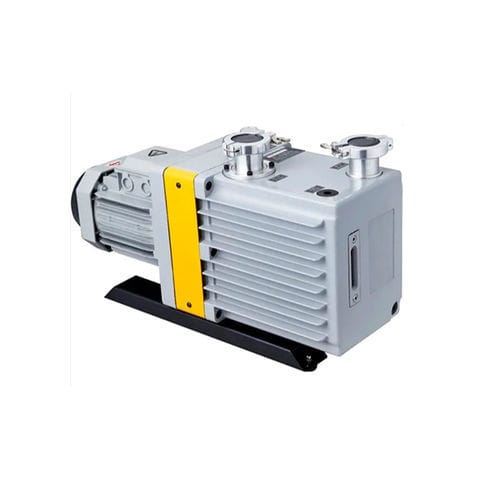

Rotary vane vacuum pump MVD-040oil-lubricatedtwo-stagesingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-lubricated
- Number of stages
- single-stage, two-stage
- Ultimate vacuum
0.01 mbar
(0 psi)- Flow rate
40 m³/h, 48 m³/h
(1,412.59 ft³/h, 1,695.1 ft³/h)- Power
1.5 kW
(2.04 hp)- Operating temperature
Min.: 5 °C
(41 °F)Max.: 40 °C
(104 °F)- Length
621 mm
(24 in)- Width
210 mm
(8.27 in)- Height
346 mm
(13.62 in)- Noise level
53 dB, 55 dB
- Weight
65 kg
(143.3 lb)
Description
This oil-lubricated, two-stage rotary vane pump is built to produce a fine vacuum range.
It is an excellent choice for the research field as well as in production lines.
Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam.
Catalogs
No catalogs are available for this product.
See all of MARPA VACUUM S.L‘s catalogsOther MARPA VACUUM S.L products
Two-stage lubricated rotary vane vacuum pumps
