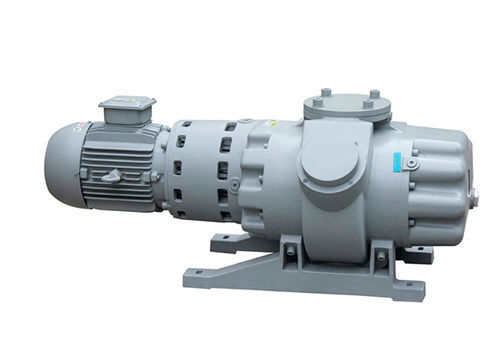

Roots vacuum pump MVR-1000

for distillationchemical processfor the chemical industry

Roots vacuum pumps are dry-running vacuum pumps that can be used with a primary pump in all industrial vacuum and fine vacuum processes. Their main purpose is to allow the vacuum system to operate at a higher pumping speed in finer vacuum ranges and, thus, achieve a better final vacuum level. These pumps can be supplied with two options: - Bypass and valve system: allows the roots pump to be started up at atmospheric pressure at the same time as the primary pump. - Magnetic drive: allows the pump to operate without the presence of seals that are susceptible to wear, thus reducing downtime and the cost of pump repair by a factor of 2 or even 3. Applications: This product is designed for a multitude of uses, including: - Vacuum packaging - Metallurgy - Industrial coatings - Vacuum drying - Vacuum impregnation - Low speed wind tunnels - Vacuum distillation - Drying and degassing Technical Specifications: Technical data | Units | 50 Hz | 60 Hz Flow rate | m³/h | 1000 | 1240 Ultimate pressure | mbar | 3x10⁻⁴ | 3x10⁻⁴ Maximum pressure difference | mbar | 80 mbar | 80 mbar Motor power | Kw | 4 | 4 Nominal motor speed | rpm | 2950 | 3480 Noise level | dB(A) | 68 | 68 Weight approx. | Kg | 233 | 233 Gas inlet | mm | 100 | 100 Gas outlet | mm | 100 | 100 - Series: MVR Series - Price: On request (large discounts may apply)
