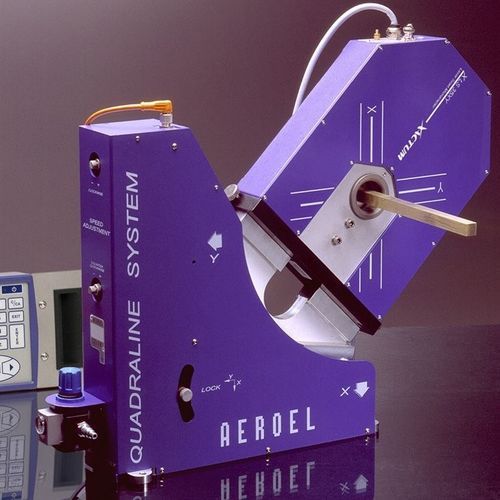

Optical micrometer QUADRALINE

laserscanningoutside

QUADRALINE.XY is a Laser System designed for the in-line control of the two dimensions of extruded or rolled products featuring rectangle-like cross section. Due to its special features, Quadraline guarantees reliable and accurate measurements without the need for a tight alignment and tolerates product vibration and twisting. The QUADRALINE Laser System has been specially designed for on-line monitoring of the two dimensions of rolled or extruded products having a rectangular cross section, such as, flat wire for hairpin, metal sections, plastic extruded sections, superconducting wire; enameled straps ... • It measures dimensions from 0.1 mm to 30 mm, using crossed beams, dual axis laser gauges. • It checks the product tolerance and alerts the operator when the shift from nominal dimensions exceeds the pre-set limits • It performs automatic process regulation, keeping the product within the tolerance limits throughout production • Detailed statistical reports are processed and printed for each manufacturing batch • It can be easily connected to a Computer to download measured data or to allow remote system programming
