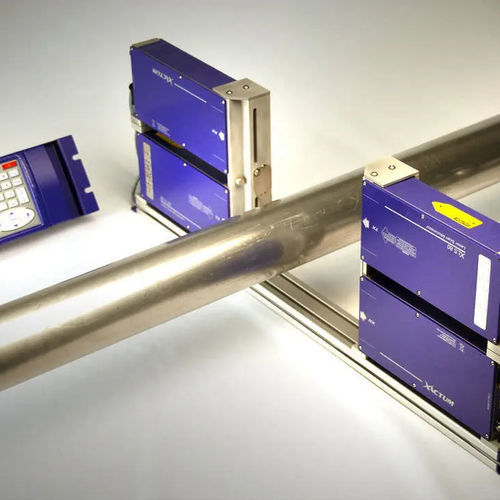

Diameter measuring system BARLINE

lasertubefor quality control

BARLINE Laser Measuring Systems are particularly suitable for the diameter control of ground bars or drawn metallic tubes. Thanks to a perfect balance between straightforward operation, reliability and advanced performance, BARLINE Systems represent todays ideal solution for process automation and quality control. BARLINE is a Laser System which has been specially designed for on-line gauging of the diameter of products manufactured in cut lengths, such as: steel ground bars, steel drawn tubes, copper tubing .. - It measures the diameter and the ovality from 0.1 to 149 mm, using single or dual axis (XY) laser gauges, depending on the diameter range and the type of product. - It records and prints the maximum, minimum and average values read along the bar and, following the pre-set tolerance limits, it triggers suitable sorting signals at the end of each bar. - It performs automatic grinder regulation keeping the product within the tolerance limits throughout production. - Detailed statistical reports are processed and printed for each bundle of bars. - It can be easily interfaced with a Computer to download measured data or to allow remote system programming.
