Laser micrometer WIRELAB

outsidefor wire diameterfor cable diameter

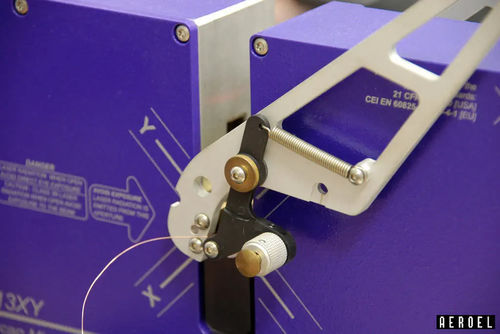

WIRELAB is a bench top laser micrometer specially designed for off-line checking of the diameter and the ovality of drawn or extruded products. WIRELAB uses a dual axis laser gauge to measure the diameter and the ovality of products like: drawn wire, ferrous and non ferrous, electric cable, enameled wire, optical fibres ... - Measurable diameters range from 0,04 mm up to 32 mm, with a resolution up to 0.1 µm - It checks the wire tolerance, comparing the measured values with the pre-set limits. - Printing of measuring reports. - It performs basic statistical analysis. - Measured data are stored in memory and can be downloaded into a remote PC.
