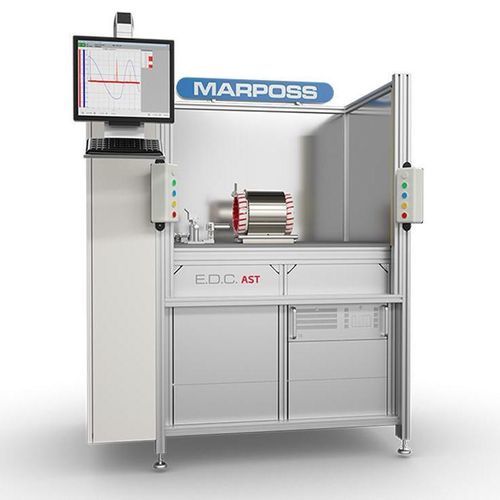

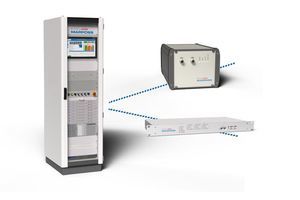

Impulse voltage test system AST5/W

for electrical machines and installationsfor automotive applicationsfor electric motors

Overview
The AST family provides automatic testing systems for production inspection of stators, coils and windings of electric motors. The AST5/W platform is engineered for flexibility and customization to meet varied production requirements, supporting motor powers from a few watts up to 5 MW and 2–24 leads.

Application and scope
Suitable for inline automatic production or operator-run benches (single or double stations). Configurable for small motors up to large industrial machines, with variants for medium-voltage testing where required.

Tests and measurement capabilities

• High Voltage (HV) and Surge tests (basic tests included)
• Optional Partial Discharge (PD) testing for insulation diagnostics
• Special inter-turn and winding-to-ground insulation diagnostics to detect faults not revealed by standard HV/surge

Software, data and results management
Base software includes measurement acquisition and essential functions for saving, stamping and archiving test results. Features: database of test programs, user-defined test sequences (type, number, order and parameters), certificate printing in multiple languages, optional adhesive label printing, result storage/archiving, preventive maintenance schedules, calibration and autodiagnostic routines. Remote assistance and LAN connectivity available.

Options and special modules

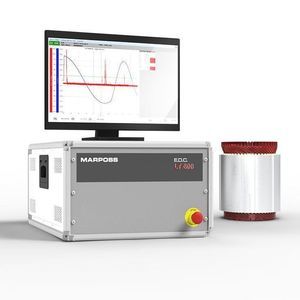

• Partial Discharge module (optional)
• Special module 320/ACS: bonding of stator windings with management of up to 3 bonding power supplies in parallel (see ACS320/W for details)
• AST5/WH: medium-voltage version capable of surge tests up to 60 kV

Benefits

• High configuration flexibility to match production lines
• Intuitive and programmable software for tailored test sequences
• Optional high-capacity variants for automotive stator testing

Documentation
Brochures and manuals available for AST5/W in English, Italian and Simplified Chinese.

Technical specifications

• Model: AST5/W
• Product type: Automatic testing system for stators, coils and windings
• Applicable motor power range: from a few watts up to 5 MW
• Supported leads: 2 to 24
• Operation modes: integration on automatic lines or operator-run benches; single or double station work benches
• Optional tests: Partial Discharge; inter-turn and winding-to-ground insulation diagnostics
• Bonding option: module 320/ACS supporting up to 3 bonding power supplies in parallel
• Medium-voltage version: AST5/WH — surge tests up to 60 kV
• Software/data: database of test programs, custom test sequences, results saving/stamping/archiving, certificate and label printing
• Maintenance/support: preventive maintenance, calibration, autodiagnostic, remote assistance
• Connectivity: LAN/network capabilities
• Documentation languages: English, Italian, Simplified Chinese
