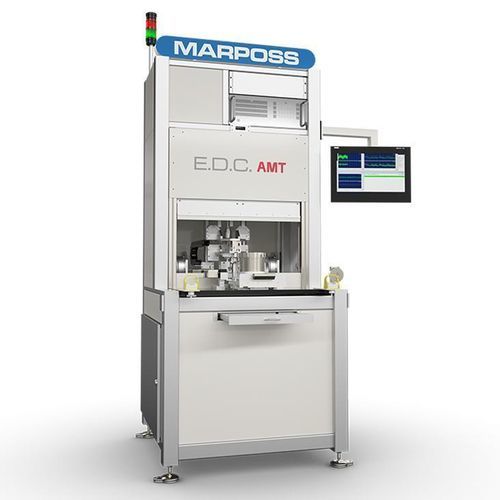

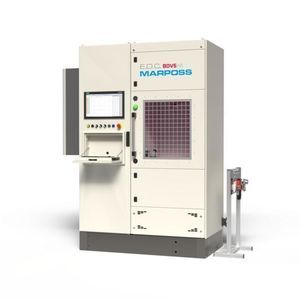

Insulation testing system AMT5/W

sound qualitysafetyelectrical safety

Overview
The AMT5/W family comprises configurable systems for automatic testing of electric motors in production and laboratory environments. Each solution is developed to customer requirements to ensure repeatable end-of-line and R&D characterisation. Configurations range from manually loaded benches for small batches to partially or fully automated multi-station lines for high throughput.

Primary applications and uses
The AMT5/W is suitable for production end-of-line testing and R&D/laboratory characterisation (ATC320/W version). Delivery formats include single test benches, semi-automatic islands and fully integrated automatic stations according to production needs.

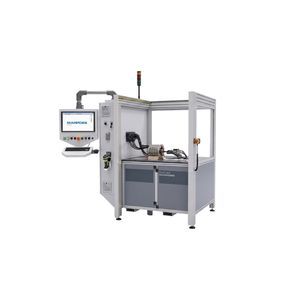

Major system components

• AMT320/W computerised control unit: test process management and automation control.
• Active or passive brake: for load and braking tests, including regeneration options.
• Power Supply Unit (PSU320): integrates PDU and DC supply for the DUT inverter and active brake; supports DC feeding of the DUT and regeneration of braking energy to the grid.

Supported motor types
The AMT320/W supports a broad range of motors: single-phase and three-phase AC, DC (including wiper motors), brushless, geared motors, swing/sliding gate motors, shutter/blind motors and specialised types such as synchronous reluctance motors.

Available testing solutions and functions
The AMT5/W family performs electrical and functional characterisation. Main tests and measurements include:

• Insulation tests and Partial Discharge measurements
• Safety tests
• No-load tests
• Load tests (with active/passive brake)
• Winding temperature rise tests
• Start-up tests
• Complete motor characterisation (electrical and mechanical)
• Automatic efficiency and loss calculation according to EN 60034-2-1
• BEMF (Back Electromotive Force) measurements with RMS and THD indication
• NVH (Noise, Vibration, Harshness) tests
• Rotation direction and rotation verification
• Hall sensors, resolver and encoder checks
• Blocked (stall) motor tests
• Cogging and friction tests
• Ld and Lq acquisition

Configurations and integration options
The AMT5/W is modular and configurable to production requirements. Typical options include:

• Motor power ranges: integrated PSU solutions up to 20 kW or external PSU setups up to 1 MW.
• Bench structure: single benches to multi-station arrangements (two or more stations) and custom fixtures for specific motor types.
• Multi-station solutions: rotary tables and multi-position layouts for high throughput.
• Safety and ergonomics: safety light curtains and operator-optimised layouts to meet industrial safety standards.
• Line integration: stand-alone benches, semi-automated islands or fully automatic stations for direct insertion into production lines.
• Specialised variants: AMT5/WF (fan testing with speed, rotation and vibration checks) and AMT5/WP (pump end-of-line testing: flow, pressure, head, capacity, speed, torque and rotation).

R&D and laboratory option
For development and laboratory use, Marposs E.D.C. provides the ATC320/W variant designed for detailed characterisation, validation and prototyping of electric motors, enabling in-depth analysis and development activities.

Customisability and support
Marposs E.D.C. develops each AMT5/W system to customer specifications to support repeatable testing in production. Systems are modular to allow upgrades, integration of additional tests and adaptation to product evolution.

Characteristics / spécifications techniques

• Model family: AMT5/W
• R&D variant: ATC320/W (for characterisation and prototyping)
• Control unit: AMT320/W computerised test management
• Brake options: active or passive brake for load/regeneration testing
• Power unit: PSU320 with integrated PDU and DC supply with regeneration capability
• Motor power range: up to 20 kW (integrated PSU) or up to 1 MW (external PSU)
• Supported motor types: single-phase AC, three-phase AC, DC, brushless, geared, gate/shutter motors, synchronous reluctance
• Available tests: insulation, partial discharge, safety, no-load, load, temperature rise, start-up, BEMF, NVH, rotation check, sensors/encoders, blocked motor, cogging, friction, Ld/Lq acquisition
• Automation levels: manual benches, semi-automatic stations, fully automated line integration
• Mechanical configurations: single bench, multi-station (including three-station rotary tables), custom fixtures
• Safety & ergonomics: safety light curtains and ergonomic layouts available
• Specialised configurations: AMT5/WF (fan testing), AMT5/WP (pump end-of-line testing)
