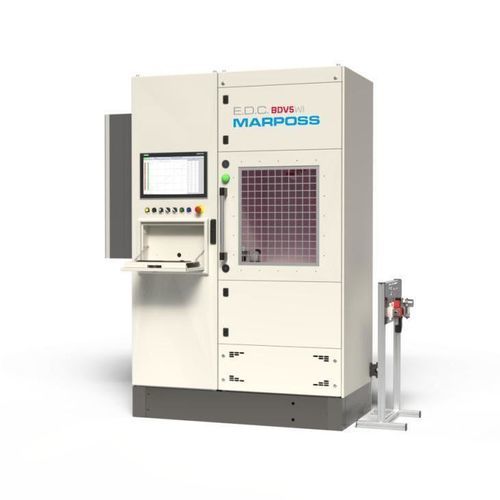

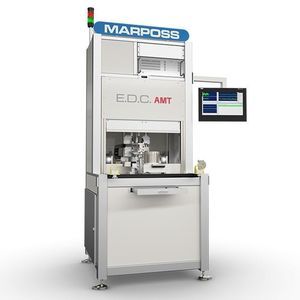

High-voltage hipot tester BDV5

DCAC

Overview BDV Test Bench is a high-voltage test bench designed for Breakdown Voltage (BDV) validation and for verifying the performance of the electrical insulation of high-voltage components. The system provides a controlled and reproducible test environment particularly suited to research and development, material characterization, design optimization and early detection of potential insulation weak spots. The bench performs BDV tests in AC or DC on a wide range of components. The component is placed in dedicated tooling and connected through HV clamps and conductive media; voltage is then applied according to a programmable ramp with automatic breakdown voltage detection.

Applications The system is intended for electrical insulation verification and characterization of dielectric limits for components such as electric motor stators, hairpins, enamelled wires, HV connectors, wiring harnesses and immersed or encapsulated components. Test parameters are configurable through dedicated recipes and include ramp rate, test duration and current threshold. Breakdown voltage, leakage current and test duration are recorded during the test.

Technical table Product type: High-voltage test bench for Breakdown Voltage (BDV) validation
Application: Electrical insulation verification and characterization of dielectric limits
Testable components: Electric motor stators, hairpins, enamelled wires, HV connectors, wiring harnesses and immersed or encapsulated components
Test modes: BDV in AC or DC
Maximum AC voltage: 30 kVrms @ 50/60 Hz
AC generator output current: 250 mA @ 10 kV AC; 60 mA @ 30 kV AC
Optional DC generator: Up to 6 kV / 20 mA
Settable trip threshold: User-configurable for each test, typically up to 40 mA
Voltage ramp: Programmable, e.g. 500 V/s
BDV detection: Automatic breakdown voltage detection
Configurable parameters: Voltage ramp rate, test duration, current threshold
Recorded quantities: Breakdown voltage, leakage current, test duration

Technical specifications

• Test modes: AC BDV and DC BDV
• Maximum AC test voltage: 30 kVrms at 50/60 Hz
• AC generator output current capability: 250 mA at 10 kV AC; 60 mA at 30 kV AC
• Optional DC generator: up to 6 kV, 20 mA
• Programmable voltage ramp (example: 500 V/s) and user-definable ramp profiles
• Settable trip/current threshold per test (typical up to 40 mA)
• Automatic breakdown voltage detection and logging
• Recorded data per test: breakdown voltage, leakage current, test duration
• Recipe-based configuration: ramp rate, test duration, current threshold and other parameters
• Suitable for: stators, hairpins, enamelled wires, HV connectors, wiring harnesses, immersed/encapsulated components
