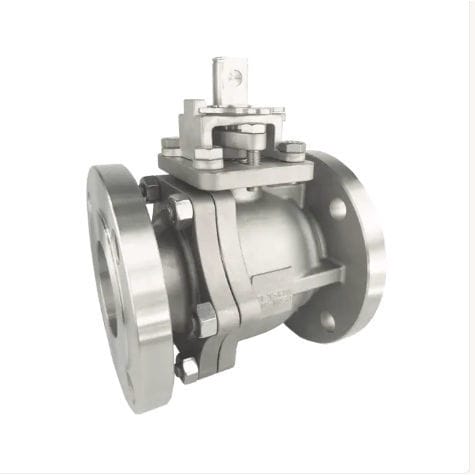

Ball valve pneumaticelectrically-actuatedmanual
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual, pneumatic, electrically-actuated
- Function
- shut-off, isolation
- Media
- for water, for oil, for chemicals, for gas, for steam
- Body
- flange, 2-piece
- Material
- stainless steel, PTFE
- Other characteristics
- full-flow
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 200 °C
(392 °F)
Description
Overview
Technical specifications
Applications
Options & customization
Maintenance & standards
Ordering information
- Two-piece flanged ball valve FV-2P for industrial on/off service and isolation in piping systems.
- Full-bore design to reduce pressure loss; two-piece body enables simplified maintenance and seat replacement.
Technical specifications
- Sizes: DN15 to DN200
- Pressure ratings: PN16 standard, PN40 optional (or ANSI Class 150/300 equivalents)
- Materials: body A351 CF8M (316), ball AISI 316, seats PTFE or reinforced PTFE
- Temperature range: -20°C to 200°C (depending on seat material)
- End connections: EN1092-1 flanges standard; ASME B16.5 available on request
- Actuation interface: ISO 5211 mounting for manual, gearbox, pneumatic or electric actuators
Applications
- Suitable for water, steam (low/medium), oil, gas, chemical and general process services
- Commonly used in industrial process lines, utilities, HVAC and petrochemical installations
Options & customization
- Seat materials and coatings (reinforced PTFE, RTFE); metal seats available for high-temperature applications
- Fire-safe variants, blow-out proof stem, locking device and anti-static design
- Special alloys (duplex, Hastelloy) and flange standards on request
Maintenance & standards
- Two-piece construction allows inline disassembly for seat and stem service without pipe removal
- Manufacturing and testing can follow API 608 / ISO 17292 and relevant EN/ASME standards
Ordering information
- Specify model FV-2P, nominal size (DN), pressure class, body/ball/seat materials, seat type, flange standard and required actuation
