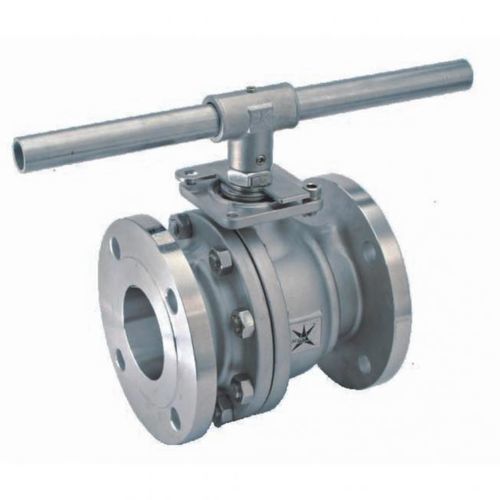

Ball valve 90manualisolationshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- shut-off, isolation
- Media
- for chemicals, for petroleum, for gas
- Body
- flange, 2-piece, ATEX
- Applications
- industrial, for the chemical industry, for pipelines, for the petroleum industry, refinery
- Material
- stainless steel, carbon steel, cast steel, PTFE, polytetrafluoroethylene
- Other characteristics
- full-flow, anti-static, ATEX, for hazardous environments
- DN
Max.: 304.8 mm
(12 in)Min.: 12.7 mm
(0.5 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -20 °C
(-4 °F)
Description
Product description
A heavy-duty two-piece full-bore flanged ball valve rated to ANSI Class 150/300 and PN16/40. ATEX approved with anti-static device, graphite-filled body seals and ISO flange (ISO 5211) for actuator integration. Available in CF8M, WCB and special alloys. Sizes from 1/2" to 12". Temperature range -20°C to +200°C.
Specifications
Features
Applications
Technical specifications
A heavy-duty two-piece full-bore flanged ball valve rated to ANSI Class 150/300 and PN16/40. ATEX approved with anti-static device, graphite-filled body seals and ISO flange (ISO 5211) for actuator integration. Available in CF8M, WCB and special alloys. Sizes from 1/2" to 12". Temperature range -20°C to +200°C.
Specifications
- Design: 2-piece flanged
- Port: Full
- Size: 1/2" ~ 12"
- Rating: ANSI Class 150/300, PN16/40
- Body: CF8M / WCB / Special Alloy
- Seats: PTFE / RTFE
- Face to Face: ANSI B16.10, EN 558-1, DIN 3202
- Temperature Range: -20°C to +200°C
Features
- Full port design for unrestricted flow
- ATEX approved for use in hazardous areas
- Anti-static device to prevent ignition risks
- Graphite-filled body seals for enhanced sealing at elevated temperatures
- ISO flange (ISO 5211) for direct actuator mounting
- Large bore options up to 12"
Applications
- Oil and gas
- Petrochemical
- Refining
- Chemical processing
- Hazardous areas and explosive atmospheres
Technical specifications
- Design: 2-piece flanged
- Port: Full
- Size: 1/2" ~ 12"
- Rating: ANSI Class 150/300, PN16/40
- Body materials: CF8M / WCB / Special Alloy
- Seats: PTFE / RTFE
- Face to Face standards: ANSI B16.10, EN 558-1, DIN 3202
- Temperature range: -20°C to +200°C
