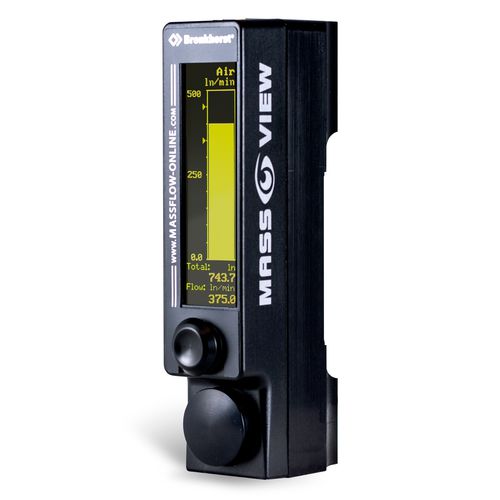

Thermal flow meter MV-106

massfor gasin-line

10 pre-installed gases Bright, graphical OLED display Digital or analog output; alarm and counter functions Features Clear indication in: - actual flow rate (bar graph and value) - desired flow units - type of gas - totalised flow Bright, wide-angle OLED display Free of parallax error Virtually independent of temperature and pressure variations Low pressure drop Wide flow ranges Fast response Configurable password protection Alarm and counter functions Relays Multi Gas / Multi Range 10 Pre-installed gases Digitally calibrated Technical specifications Standard calibration gas Air, other gases are converted using our Fluidat® conversion model which will introduce extra inaccuracy Rangeability up to 1:100 Response time (sensor) (t63%) 2 seconds Temperature coefficient Zero: <0.1%FS/°C, Span: <0.2%RD/°C Leak integrity, outboard < 1 x 10-9 mbar l/s He Attitude sensitivity < 0.1% FS Electrical properties Power supply +15 … 24 Vdc (+/- 10%) Max. power consumption approx. 135 mA Analog output 0 .. 5 Vdc EMC EU declaration Applications The fields of application for MASS-VIEW® mass flow meters are diverse: Burner Control (furnace construction) Welding (welding gas monitoring) Leak measurements (quality, environment) Coating (equipment construction) Regulation of gaseous atmospheres (biotechnology) Measurements of gas consumption (hospitals) Test equipment (production maintenance) Local preparation of a gas mixture
