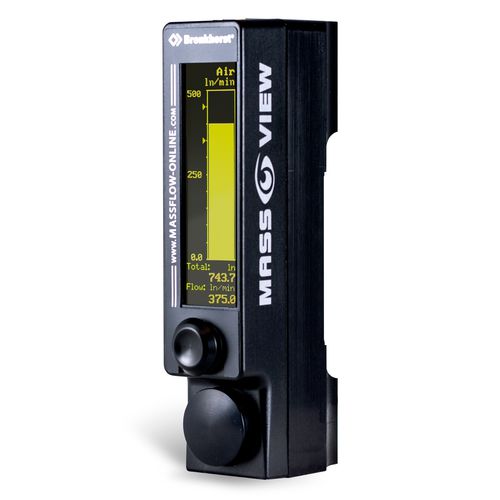

Thermal flow meter MV-108
massfor gasin-line

Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line
Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line
Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line - image - 2
Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line - image - 3
Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line - image - 4
Thermal flow meter - MV-108 - Mass Flow ONLINE BV - mass / for gas / in-line - image - 5
Add to favorites
Compare this product

Characteristics

Technology
thermal
Type
mass
Fluid
for gas
Installation
in-line, hand-held, in metering tube
Material
aluminum
Communication
RS485, analog output, Modbus RTU, digital output, RS-232
Supply voltage
24VDC
Protection level
IP40
Applications
for the pharmaceutical industry, for the food industry, for high flow rates, for biotechnology
Other characteristics
digital, high-accuracy, with display, electronic, with alarm function, with counting function
Mass flow rate

Max.: 38.8 kg/h
(85.54 lb/h)

Min.: 0 kg/h
(0 lb/h)

Volumetric flow rate

Max.: 0.0083 m³/s
(132.086 ft³/s)

Min.: 0 m³/s
(0 ft³/s)

Process temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %, 1 %, 2 %

Repeatibility

0.2 %

Description

Mass Flow Meter for gases with integrated display Direct thermal mass flow measurement 10 pre-installed gases Digital or analog output; alarm and counter functions Features Clear indication in: - actual flow rate (bar graph and value) - desired flow units - type of gas - totalised flow Free of parallax error Virtually independent of temperature and pressure variations Low pressure drop Wide flow ranges Fast response Configurable password protection Alarm and counter functions Relays Multi Gas / Multi Range 10 Pre-installed gases Digitally calibrated Free software tools Applications The fields of application for MASS-VIEW® mass flow meters are diverse: Burner Control (furnace construction) Welding (welding gas monitoring) Leak measurements (quality, environment) Coating (equipment construction) Regulation of gaseous atmospheres (biotechnology) Measurements of gas consumption (hospitals) Test equipment (production maintenance) Local preparation of a gas mixture Flow rate monitoring (laboratories) Cutting (steel sheets) Cost centre billing Analytical equipment
