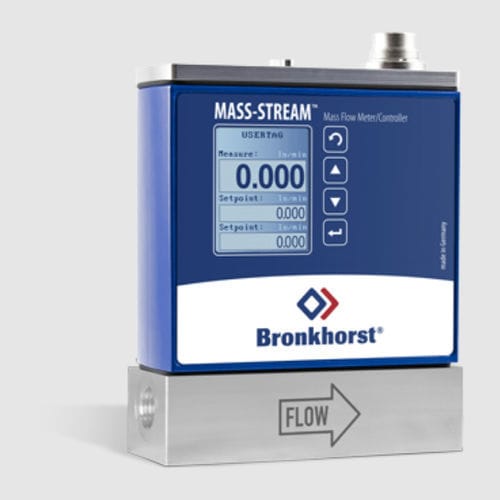

Thermal flow meter MS-105massfor gasin-line
Add to favorites
Compare this product
Characteristics
- Technology
- thermal
- Type
- mass
- Fluid
- for gas
- Installation
- in-line
- Material
- aluminum
- Communication
- 4-20 mA, analog output, RS-232
- Supply voltage
- 24VDC
- Protection level
- rugged, IP65
- Applications
- industrial, for low flow rates, for the food industry, laboratory, for the beverage industry, for medical applications, for pumping applications, for environmental analysis, for biotechnology, for the semiconductor industry
- Other characteristics
- compact, precision, with display, with alarm function
- Mass flow rate
Max.: 3.9 kg/h
(8.6 lb/h)Min.: 0 kg/h
(0 lb/h)- Volumetric flow rate
Max.: 6 m³/h
(26.4172 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Precision
1 %
- Repeatibility
0.2 %
Description
Proven direct inline CTA sensor (no bypass)
Excellent repeatability
Compact, rugged design (IP65, dust and waterproof)
Very low pressure drop
Less sensitivity to humidity or dirt
With integrated multi-functional TFT display
Features
Direct inline measurement principle
Usable for virtually every kind of gas or gas-mix
Mass flow measurement wide scope of applications
Good response times
Including calibration certificate
Low sensitivity to dirt and humidity
Compact and robust design
Measurement without moving parts
Connect the instrument to a PLC (programmable logic controller), PAC (programmable automation controllers) or DAQ (data acquisition system) with our loose end cable 7.03.191
Modern multi-functional TFT display
- IP65 compliant
- Operator buttons on the instrument
- Customized adjustable multi-functional display: actual flow, totaliser with memory and reset,
alarm, setup and much more
