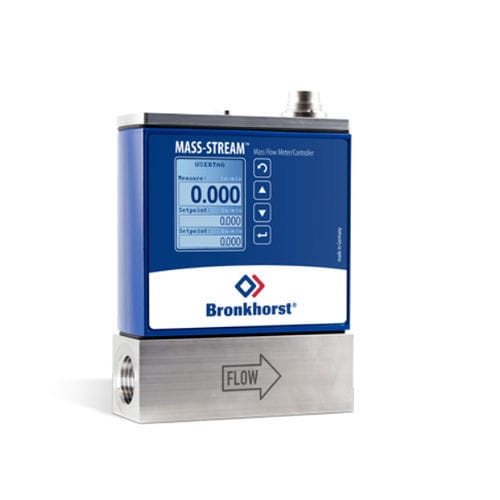

Thermal flow meter MS-108massfor gasin-line
Add to favorites
Compare this product
Characteristics
- Technology
- thermal
- Type
- mass
- Fluid
- for gas
- Installation
- in-line
- Material
- aluminum
- Communication
- 4-20 mA, analog output, RS-232
- Supply voltage
- 24VDC
- Protection level
- rugged, IP65
- Applications
- for the petrochemical industry, industrial, for test benches, for the pharmaceutical industry, for low flow rates, for the food industry, laboratory, for the beverage industry, for the oil and gas industry, for the semiconductor industry, for medical applications, for biotechnology, for environmental analysis, for marine applications
- Other characteristics
- compact, high-accuracy, with display
- Mass flow rate
Max.: 38.8 kg/h
(85.54 lb/h)Min.: 0 kg/h
(0 lb/h)- Volumetric flow rate
Max.: 30 m³/h
(132.086 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Precision
1 %
- Repeatibility
0.2 %
Description
Proven direct inline CTA sensor (no bypass)
Excellent repeatability
Compact, rugged design (IP65, dust and waterproof)
Very low pressure drop
Less sensitivity to humidity or dirt
With integrated multi-functional TFT display
Features
Direct inline measurement principle
Usable for virtually every kind of gas or gas-mix
Mass flow measurement wide scope of applications
Good response times
Including calibration certificate
Low sensitivity to dirt and humidity
Compact and robust design
Measurement without moving parts
Connect the instrument to a PLC (programmable logic controller), PAC (programmable automation controllers) or DAQ (data acquisition system) with our loose end cable 7.03.191
Modern multi-functional TFT display
- Operator buttons on the instrument
- Customized adjustable multi-functional display: actual flow, totaliser with memory and reset,
alarm, setup and much more
