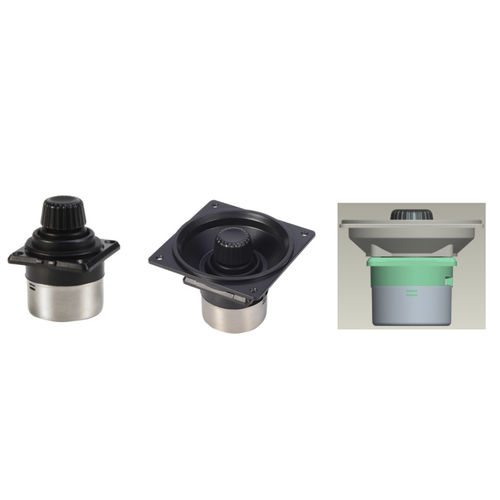

Hall effect mini joystick MKF-JS10

analogcontactless inductive3-axis

MKF-JS10 is a Multi-axis contactless joystick controller, designed for precision fingertip control applications where safety and long trouble-free life are primary requirements. It is available in two or three-axis configurations and can accommodate a choice of handles, including push-button switch versions. Two mounting flange options allow attachment above or below the panel. The compact size, low operational force, and high reliability are ideal for applications that include powered wheelchairs, robotics, UAV, CMM machines, medical and CCTV equipment, professional camera controls, and remote-controlled chest-packs. Operation Range - Circle Operation Angle - XY axis ±20°; Z axis ±18° Power Supply - DC5V, 12V(Optional) Outputs - 0-5v(0.5-4.5 optional),RS232,RS422 Life Span - 5 million operating cycles Material - engineering plastics Operation Temperature - -40°C to +70°C
