- Hall effect joystick
- MATE TECHNOLOGY SHENZHEN LIMITED

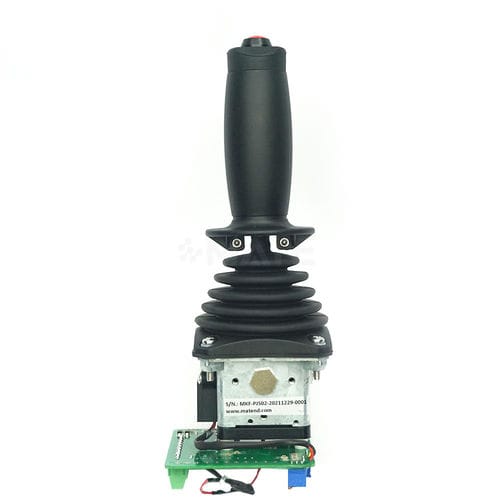

Potentiometer joystick MKF-PJS02Hall effectmicro-switchhydraulic
Add to favorites
Compare this product
Characteristics
- Technology
- Hall effect, single-axis, 2-axis, potentiometer, micro-switch, hydraulic, resistance
- Configuration
- with buttons
- Applications
- for remote control, for utility vehicles, for off-highway vehicles
- Protection level
- IP65
- Other characteristics
- panel-mount, multifunction
Description
Cross direction or arbitrary direction operated optional
Potentiometer or hall effect angle detection, long life span
Large current microswitch optional (10A@30Vdc)
Various output optional
Various handle optional
Potentiometer
Power Supply Resistance - <36Vdc
Resistance - 5KΩ, 10KΩ
Center Angle - ±3°
Maximum Dissipation - 0.2W
Hall
Power Supply - 5±0.5Vdc
Supply Current - 300N
Expecting Life - >2 million cycles(potentiometer), >5million cycles (hall)
Weight - 460g (without handle )
