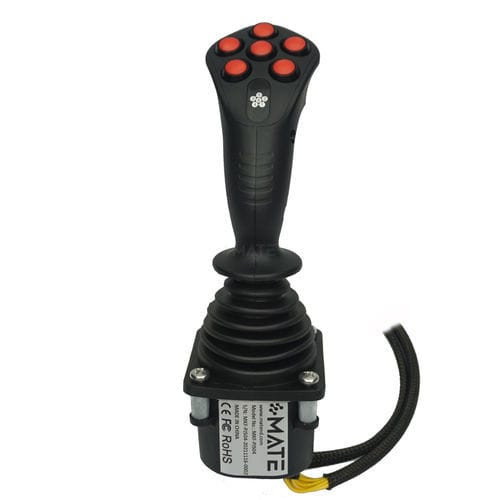

Panel-mount joystick MKF-PJS04

Hall effectpotentiometerhydraulic

MKF-PJS04 Hall / Potentiometer Effect, Dual Axis, Panel Mounted Ergonomics design on mobile application. Contactless hall effect and long expect-life potentiometer optional. Various handle, different number and location of button. switches optional. Electrical data Potentiometer Power supply - <36Vdc Resistance - 2KΩ, 4KΩ, 5KΩ, 10KΩ Electrical angle - ±18° Center voltage - 48%~52%Vdc (Power supply) Center tap angle - ±2.5° On-load voltage (max) - 32Vdc Power dissipation - 0.25W ( 25°) Hall Power supply - 5±0.5Vdc Supply current - <11mA (Each of hall ) Maximum allowable overload voltage - 20Vdc Reverse maximum allowable voltage - -10Vdc Output linearity tolerance - 2million cycles (Potentiometer) >5 million cycles (Hall effect) Weight - 475g (Without handle) Environmental data Operating Temperature - -30℃~+70℃ Storage Temperature - -40℃~+85℃
