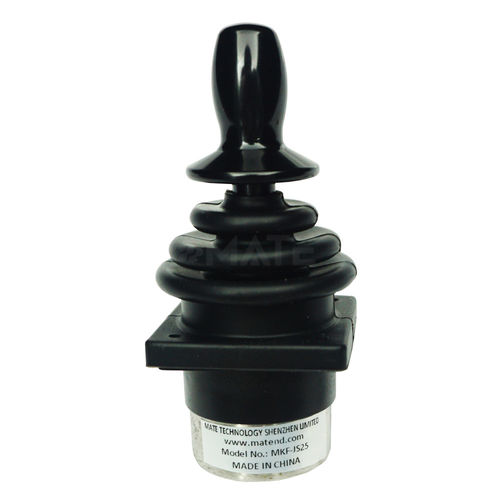

Hall effect joystick MKF-JS25

analog3-axis2-axis

H38 Series MKF-JS25 Professional Joystick for Wheelchair MKF-JS25 Hall sensor joystick, 2-axis or 3-axis, instrument panel installation method, stainless steel and aluminum alloy materials, spring automatic return structure, German high-precision Hall sensor, linear correction over the entire temperature range, protection level above IP65, Smoother operation feel, ergonomic mechanical design. Material - stainless steel + aluminum alloy Positioning - Spring returns automatically Operating angle - main joystick ±20 degrees, square limit (circular angle) Operating range - 360 degrees in all direction Button switch - no button or 1 button (waterproof button) Sensor - Hall sensor Power supply - DC5V, DC12-24V Power consumption - 9-25MA (5V power supply), the signal output and the number of axes Signal output - Analog voltage, RS485, RS422, RS232, USB Operating life - more than 5 million times Working temperature - -40 degrees to +70 degrees Storage temperature - -55℃~+85℃ Base Dimension - 38.0 x 38.0 x 31.5 Installation Dimension - 28.0 x 28.0
