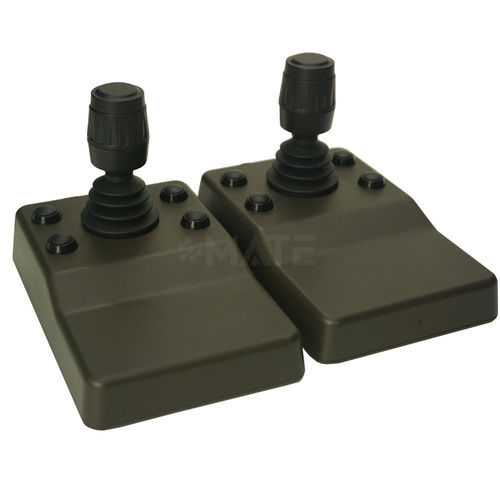

Hall effect joystick MKF-MJS-52

3-axiswith buttonsfor CCTV applications

The MKF-MJS-52 control box is integrated with a three-axis Hall effect Joystick and 4 button switches. It adopts a high-precision Hall-type sensor. The main materials are aluminum alloy and engineering plastics. The linearity is correct in the whole temperature range. IP65 dynamic waterproof. Smooth operating feel, ergonomic design. USB2.0 output, suitable for industrial equipment, robots, drones, medical equipment, aerospace, ships, radio and television, video surveillance equipment, etc. Main materials: aluminum alloy (6061), engineering plastics, stainless steel Shell color: sandblasted, oxidized black Switch: SW1(Slow): black self-reset button switch, waterproof button SW2(Med): black self-reset push button switch, waterproof button SW3(Fast): black self-reset button switch, waterproof button SW4(Measure): black self-reset button switch, waterproof button handle push angle ±25° (X, Y), operating force 0-5N handle rotation angle ±25° (Z), operating force 0-5N spring self-reset Input voltage: 5Vdc Operating life: 1 million times Working temperature: -20℃- +60℃, storage temperature: -30℃ – +70℃ Working humidity: 93±3%RH Installation dimension:Refer to installation dimension drawing
