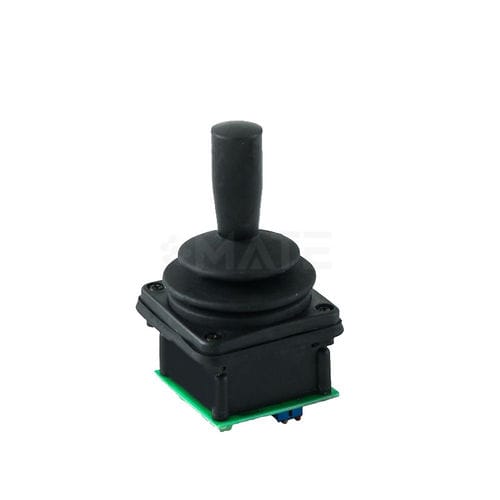

Potentiometer joystick MKF-PJS05
hydraulicsingle-axis2-axis

Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis
Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis
Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis - image - 2
Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis - image - 3
Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis - image - 4
Potentiometer joystick - MKF-PJS05 - MATE TECHNOLOGY SHENZHEN LIMITED - hydraulic / single-axis / 2-axis - image - 5
Add to favorites
Compare this product

Characteristics

Technology
single-axis, 2-axis, potentiometer, hydraulic
Configuration
fingertip
Applications
for remote control, for utility vehicles
Protection level
IP65
Other characteristics
panel-mount, spring-return

Description

Typical application on remote control box, off-highway vehicle: Dual-axis finger operated, spring return Spring return With center tap potentiometer angle detection 2mA (max) current directional switch Proportional amplifier to direct drive hydraulic proportional valve optional Power supply - <36Vdc Total resistance - 5KΩ Electrical angle - ±30° Center tap voltage - 48%~52%Vdc Center tap angle - ±2.5° On-load voltage (max) - 32Vdc Allowance maximum power dissipation - 0.25W ( 25°) Load capacity - 2mA@30Vdc (Resistance load) Breakout angle - ±3° ~ ±5° Contact resistance - 2 million cycles Weight - 125g Environmental data Operating Temperature - -30℃ ~ +70℃ Storage Temperature - -40℃ ~ +85℃ Protection level - IP65 (above the flange)
