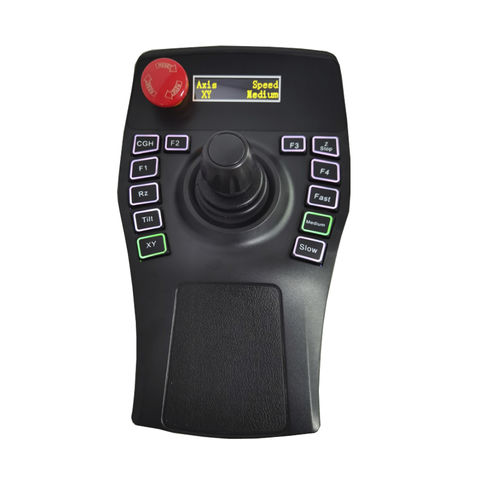

Hall effect joystick MKF-JS61

3-axisfor remote controlfor medical applications

This joystick controller is suitable for camera remote control, robot teaching, three-dimensional, laser welding, and other equipment. Ergonomic design, using the most advanced 3D Hall sensor in the world, high reliability. • - Ergonomic design • - It has a strong magnetic adsorption function, which can be directly attached to the surface of the device to prevent it from falling and breaking. • - Integrated with a 3-axis Hall type joystick • - With 12 backlighting buttons, the layout can be customized • - With one Emergency stop switch • - With one OLED display • - Signal output interface: RS232/ CAN • - Power supply:10-36V • - Factory default communication mode: CAN/250K/30mS timing sending • - Joystick: 3-axis, Hall sensor • - Display: OLED display 128X32 • - Buttons: 12 buttons • - Power supply: DC10-36V • - Power consumption: less than 2W • - Signal output: RS232or CAN interface • - Operating life: more than 1 million times • - Connector: DB9 male, cable length 3M • - Weight: 1.0KG
