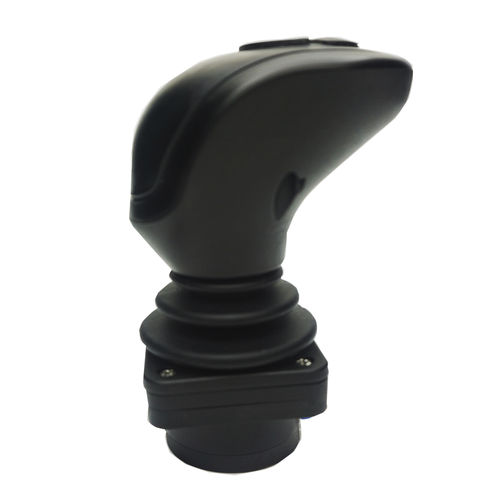

Hall effect joystick MKF-JS66

contactless inductivemulti-axisswitch

MKF-JS66 is a 3 axes contact-less joystick controller, designed for precision hand control applications where safety and long trouble-free life are primary requirements. It is available in one, two or three-axis configurations and can accommodate a choice of handles, including push-button switch versions. Two mounting flange options allow attachment above or below the panel. Compact size, low operational force and high reliability are ideal for applications which include powered wheelchairs, robotics, UAV, CMM machines, medical and CCTV equipment, professional camera controls and remote controlled chest-packs. Operation Range - square Operation Angle - XY axis ±15°; Z axis ±30° Power Supply - DC5V Outputs - 0-5v(0.5-4.5 optional), RS232, RS485, USB, CAN(2.0) Life Span - 5 million operating cycles Material - stainless steel, engineering plastics Operation Temperature - -40°C to +70°C
