rigid coupling / expandible axle / self-centering / flange
MAV 1062 series

Add to MyDirectIndustry favorites
Compare this product

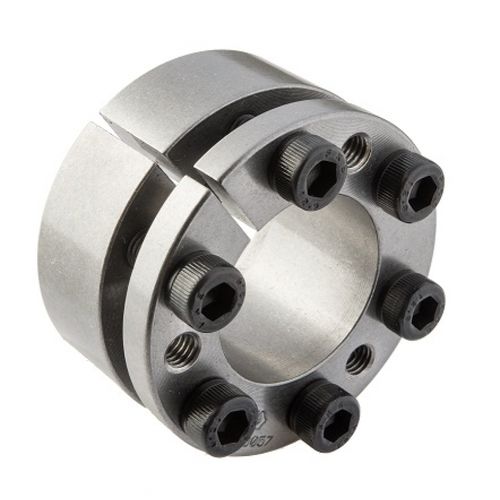

rigid coupling / expandible axle / self-centering / flange rigid coupling / expandible axle / self-centering / flange - MAV 1062 series
{{requestButtons}}

Characteristics

  • Type:

    rigid, expandible axle

  • Other characteristics:

    self-centering

  • Installation system:

    flange

  • Torque:

    Max.: 503,000 Nm (370,993.7611 ft.lb)

    Min.: 108 Nm (79.6567 ft.lb)

Description

The medium capacity, self-centering, self-locking assembly with a single taper design features shaft h8; hub bore H8 tolerances and Ra < 3.2 ?m surface finish of shaft and hub bore. The locking assembly features slotted inner ring with integrated push-off threads, slotted outer ring, set of socket head cap screws of 12.9 grade.
