rigid coupling / locking device / flange
MAV 3023 series

Add to MyDirectIndustry favorites
Compare this product

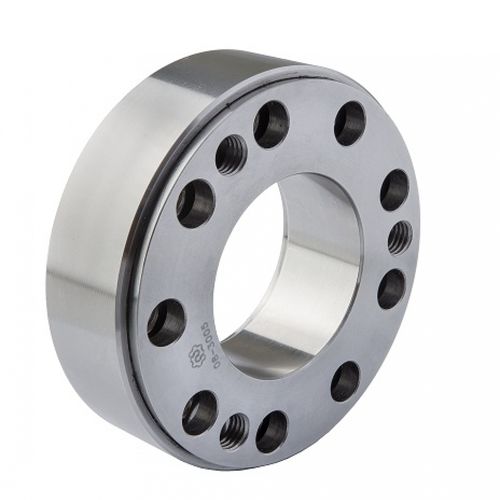

rigid coupling / locking device / flange rigid coupling / locking device / flange - MAV 3023 series
{{requestButtons}}

Characteristics

  • Type:

    rigid, locking device

  • Installation system:

    flange

  • Torque:

    Min.: 1,400 Nm (1,032.587 ft.lb)

    Max.: 149,400 Nm (110,191.7851 ft.lb)

Description

The 3023 series is an assembly that does not lock by itself and is ideal for use in linking barrow hubs such as sprockets and brake discs. Both the surfaces of the shaft and the hub has a finish of Ra < 3.2 µm. The shaft has a rated tolerance of h9. The 3023 series has a 2-part design.
