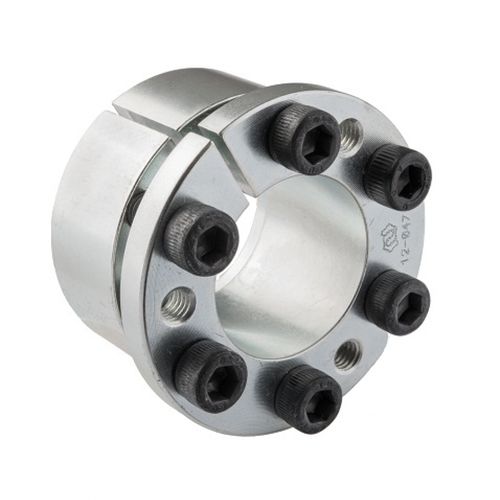

Rigid coupling MAV 1261 expandible axleshaftself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Other characteristics
- self-centering, dry
- Installation system
- flange
- Torque
Max.: 1,236 Nm
(911.6268 ft.lb)Min.: 183 Nm
(134.9739 ft.lb)
Description
medium capacity
self-centering, self-locking
fixes axial hub position during tightening
single taper design
zinc plated rings
LUBRICATION. Rings, shaft, hub bore: OIL-FREE and DRY. Screws: OILED
tolerances: shaft +-0.08mm; hub bore +-0.08mm
surface finish of shaft and hub bore Ra < 3.2µm
Composition
slotted inner ring, with integrated push-off threads
slotted outer ring
set of socket head cap screws, grade 12.9
