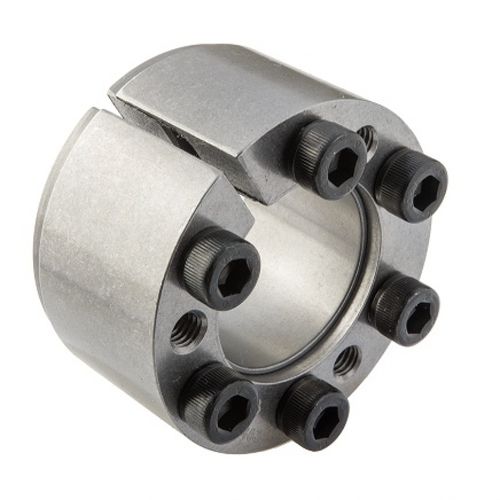

Rigid coupling MAV 6903expandible axleself-centeringflange
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Other characteristics
- self-centering
- Installation system
- flange
- Torque
Min.: 280 Nm
(206.5174 ft.lb)Max.: 19,700 Nm
(14,529.9743 ft.lb)
Description
medium capacity
self-centering, self-locking
fixed axial hub position during tightening
single taper design
well suited for axial locking of other components (ex. bearings) adjacent to the hub
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra < 3.2 µm
Composition
slotted inner ring
slotted outer ring, with integrated push-off threads
set of socket head cap screws, garde 12.9
Catalogs
MAV 6903
2 Pages
MAV - standard series
36 Pages
