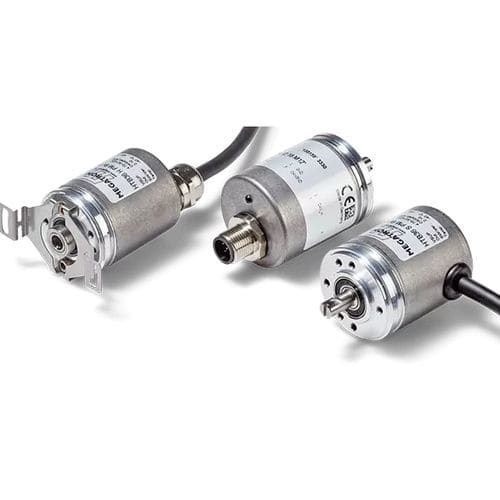

Incremental rotary encoder HTx36EabsoluteHall effect16-bit
Add to favorites
Compare this product
Characteristics
- Type
- incremental, absolute
- Technology
- Hall effect
- Absolute encoder resolution
- 16-bit, 24-bit
- Construction
- solid-shaft, hollow-shaft, single-turn, multi-turn, synchro-flange, non-contact
- Output signal
- digital, RS-485, SAE J1939, CAN, SSI, with CANopen interface
- Supply voltage
- DC
- Material
- stainless steel
- Protection level
- vibration-resistant, rugged, maintenance-free, shock resistant, heavy-duty, IP30, rugged, impact-resistant, waterproof, IP64, EMC, IP55, IP66, IP50, magnetically shielded, IP54, IP67, IP40, IP20
- Applications
- industrial, for motors, for harsh environments, for OEM, for elevators, exterior, for robotics
- Other characteristics
- high-resolution, high-accuracy, programmable, heavy-duty, for motor feedback, with integrated coupling, redundant, galvanically-isolated
- Housing diameter
36 mm
(1.42 in)
Description
HTx36E ‐ Hall encoder with battery- and gear-less true-power-on technology, up to 43 bit resolution, CAN-bus or incremental output, solid or hollow shaft
Absolute rotary encoder:
- Only digital signal outputs, CANopen, CAN SAE J1939, SSI
- Patented battery and gear-less true-power-on multiturn technology
- Singleturn resolution up to 16 Bit
- Multiturn resolution up to 43 Bit
- Patented technology for system accuracy < 0.35° (singleturn)
Incremental rotary encoder:
- From 1 to 16384 ppr in 1 incremental stepwidth order-able ex works
- Optional user-parameterizable index pulse (Z) position
