Absolute rotary encoder ETA25PM
Hall effect12-bitsolid-shaft

absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
Hall effect
Absolute encoder resolution
12-bit
Construction
solid-shaft, single-turn, multi-turn
Output signal
analog, DC output, 4-20 mA
Supply voltage
24 Vdc, 15VDC, 12 Vdc
Material
stainless steel, plastic
Protection level
dust-proof, IP66, IP40
Applications
industrial, for motors, for OEM, for elevators, for robotics, exterior
Other characteristics
compact, programmable, modular, galvanically-isolated, IC
Housing diameter

25 mm
(0.98 in)

Shaft diameter

Max.: 6 mm
(0.24 in)

6 mm
(0.24 in)

Min.: 4 mm
(0.16 in)

Length

Max.: 28.8 mm
(1.134 in)

18.8 mm
(0.74 in)

Min.: 18.8 mm
(0.74 in)

Rotational speed

Max.: 800 rpm
(5,027 rad.min-1)

Min.: 100 rpm
(628 rad.min-1)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

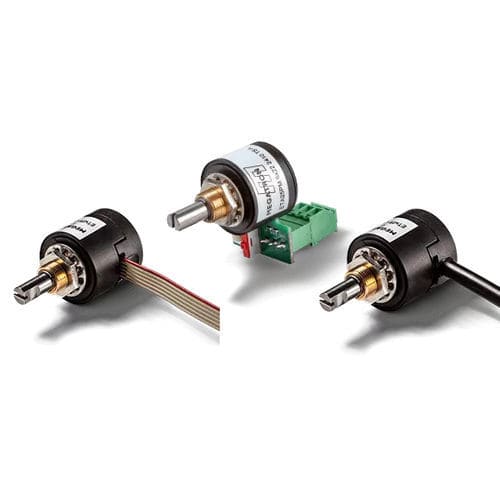

The programmable multiturn sensor ETA25PM can be parameterized by the customer on site to the desired angular measuring range and sense of rotation up to 10,000 times. Only one device for different angles of rotation, sense of rotations direct parametrizable on site. These advantages enable the user the possibilities to set up the ETA25PM multiturn encoder to the requirements of the application on site. Only one angle encoder device for different requirements is needed, which can be parameterized almost as often as required. The ETA25PM measures angles from 0…10° up to 0…72000° (absolute). The ETA25PM is available until protection class IP66 and has a long durability of more than 100 million shaft revolutions. The compact sensor in the 25 mm housing with Ø6 mm or Ø6.35 mm shaft diameter is e.g. optimally suited for use in drive units as position feedback. A variant of the ETA25PM with integrated buttons for angle programming and sense of rotation is available on request.
