Absolute rotary encoder MAB12AH

Hall effectsingle-turnhollow-shaft

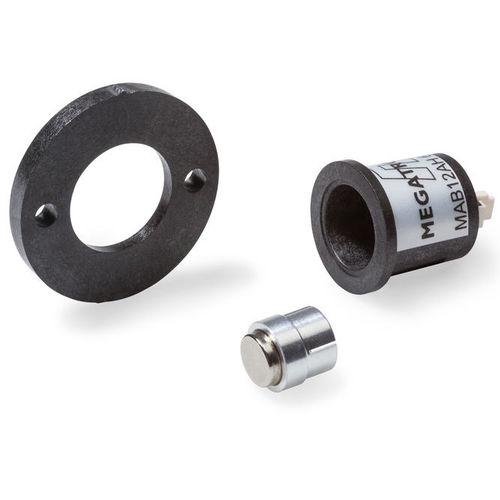

Compact kit encoder with complete mounting kit for fast integration The MAB12AH series is a miniaturised Hall effect kit encoder that enables reliable measured value acquisition thanks to its wear-free sensor technology. The absolute encoder is supplied as a complete package including mounting ring, clip-on magnet and magnet holder, which enables quick and easy installation. Thanks to the MOLEX plug-in connection, the signal line can be easily disconnected from the evaluation unit, which facilitates handling during installation and maintenance. The output signal is available as an analogue output (0...5 V, ratio metric) or PWM, allowing the sensor to be flexibly integrated into analogue or digital systems. Depending on the signal variant, the resolution is 10 or 12 bits, which enables precise angle detection. With an operating temperature range of -40 °C to +125 °C, the MAB12AH is suitable for use in demanding conditions. Options: Shaft diameter: 2 mm to 6.35 mm Output signal: Analogue (0...5 V) or PWM (5 V, with 10 or 12 bit resolution)
