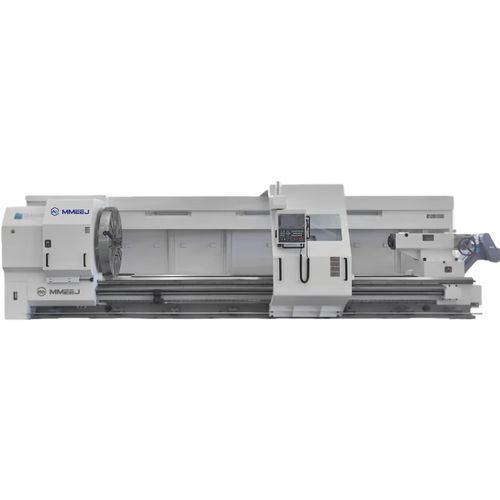

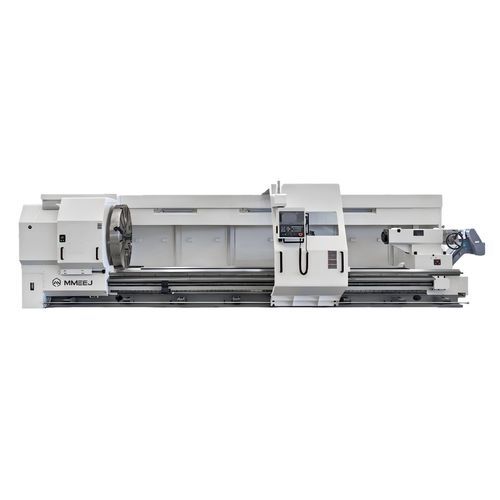

CNC lathe CKA-M series

horizontal2-axisflatbed

Product overview:
The CKA-M series horizontal CNC lathe is a flat-bed machine controlled on Z and X axes. It performs automated turning operations on large shafts and discs: internal and external cylindrical surfaces, conical surfaces, arcs, end faces, grooving, chamfering, and various thread types (metric, imperial, face, tapered). Equipped with CNC systems from FANUC or Siemens for repetitive machining cycles, it is well suited to high-volume production and machining of complex, high-precision parts.

Machining range:
Bed swing diameter: Ø1000 / Ø1250 mm (models CKA61100M / CKA61125M). Workpiece length options: 1500, 2000, 3000, 4000, 5000, 6000 mm. Max cutting lengths correspond to the selected workpiece lengths.

Key technical specifications (CKA-M series):

• Models: CKA61100M, CKA61125M
• Max swing over bed: Ø1000 / Ø1250 mm
• Max swing over cross slide: Ø630 / Ø880 mm
• Max turning diameter: Ø1000 / Ø1250 mm
• Spindle center height: 500 / 625 mm
• Main motor (servo): 22/26 kW (FANUC)
• Chuck size: Ø1000 / Ø1250 mm
• Spindle bore: Ø130 mm; front end taper: Ø140 mm 1:20; spindle nose: A2-15
• Spindle speed ranges: 2–500 rpm (low 2–87, mid 5–201, high 11–500)
• Tailstock quill: Ø200 mm, travel 300 mm, taper MT.No.6
• X/Z axis travel: X 520 / 640 mm; Z options 1370, 1870, 2870, 3870, 4870, 5870 mm
• Rapid traverse X/Z: 6/8 m/min (1500–4000 specs), 5 m/min (5000–6000 specs)
• Tool shank (vertical 4-position): 40×40 mm
• Positioning accuracy X/Z: 0.021/0.026 mm (1500/2000), 0.030 mm (3000–6000)
• Repeatability X/Z: 0.008/0.014 mm (1500/2000), 0.014 mm (≥2000 measured over 2000 mm)
• Machine dimensions and weights vary by model and length (see technical options)
