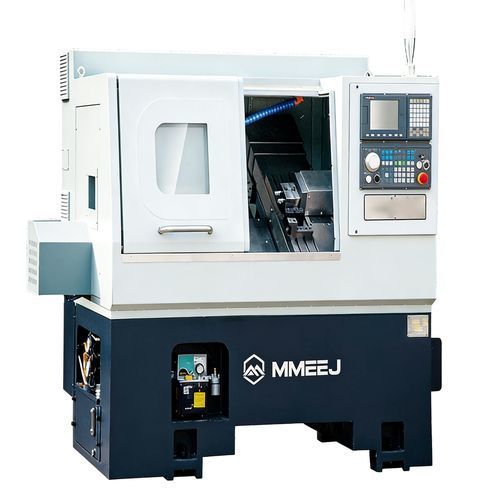

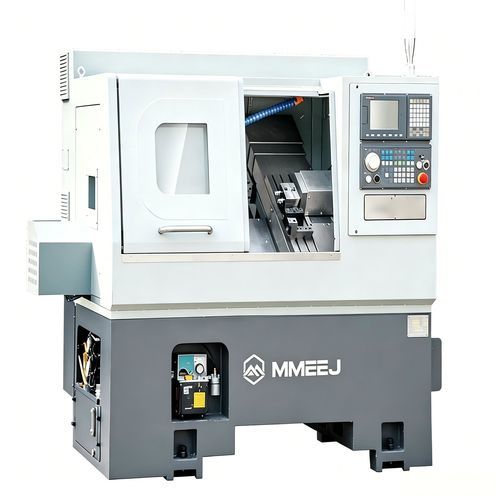

CNC milling-turning center HX series

horizontal2-axisXZ

Machine description:
Integrated cast high-rigidity bed with large anti-vibration damping and low deformation.
30° slant bed for easier loading/unloading and improved chip evacuation.
Fast feed rates and high productivity.
T-shaped gang-tool turret reduces tool-change time and supports different composite tools; optional side-cut power tool available.

Technical parameters (summary):

• Models: HX36, HX46, HX52
• Control (standard / optional): SYNTEC 22TA / (FANUC Oi-TF PLUS, SIEMENS 828D)
• Max swing diameter: 400 mm; Max turning diameter: 380 mm; Max turning length: 350 mm
• X / Z travel: 800 mm / 250 mm; Rapid traverse X / Z: 25 m/min
• Spindle taper: A2-4 (HX36), A2-5 (HX46), A2-6 (HX52)
• Hydraulic chuck: 5 inch; Spindle bore / bar through: HX36 43 / 35 mm; HX46 56 / 45 mm; HX52 62 / 51 mm
• Spindle type & motor: HX36 mechanical 5.5 kW; HX46 electric 11 kW; HX52 electric 11 kW
• Max spindle speed: HX36 4000 rpm; HX46 5000 rpm; HX52 3500 rpm
• Positioning accuracy X/Z: 0.01 mm; Repeatability: 0.006 mm; Spindle nose runout: 0.003 mm

Characteristics / specifications:

• Commercial designation: Turn & Mill Lathe (Gang tool lathe)
• Brand: MMEEJ
• Available models: HX36, HX46, HX52
• Guide way / screw: Ball screw; X/Z screw diameter 32/32 mm; guide way width 35/35 mm
• Spindle torque: HX36 26.3 Nm; HX46 37 Nm; HX52 90 Nm
• Spindle driving power: HX36 11; HX46 18.5; HX52 18.5 (as provided)
• Axis motors X/Z: 1.3 kW each
• Applications: precision turning and milling of small to medium parts in industrial production
