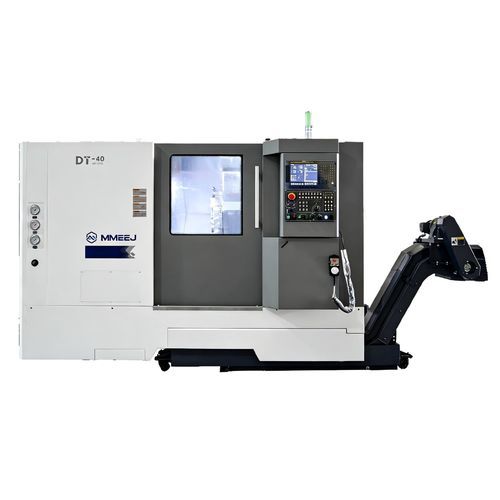

CNC lathe DT serieshorizontalslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Structure
- slant bed
- Spindle mount
- A2-8, A2-6, A2-5
- Number of tool stations
- 12 tools
- Drive system
- servo-driven
- Applications
- for shaft machining, for bar machining
- Performance
- high-rigidity
- Associated function
- milling, boring, drilling
- Diameter
480 mm, 580 mm, 680 mm
(18.9 in, 22.83 in, 26.77 in)- Spindle speed
3,500 rpm, 4,500 rpm, 5,000 rpm
(21,991.149 rad.min-1, 28,274.334 rad.min-1, 31,415.927 rad.min-1)- Maximum part length
Min.: 300 mm
(12 in)Max.: 1,025 mm
(40 in)- Maximum cutting diameter
Min.: 280 mm
(11 in)Max.: 500 mm
(20 in)- Bar capacity
45 mm, 51 mm, 73 mm
(2 in, 2 in, 3 in)- Axe X
155 mm, 215 mm, 225 mm, 265 mm
(6 in, 8 in, 9 in, 10 in)- Axe Z
Min.: 300 mm
(12 in)Max.: 1,405 mm
(55 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
7.5 kW, 11 kW, 15 kW, 18.5 kW
(10.2 hp, 15 hp, 20.4 hp, 25.2 hp)
Description
Product overview:
The DT-series slant-bed CNC lathe is a heavy-duty turning center with an integrally cast bed and 45° inclined guideways for high rigidity. Equipped with FANUC 0i-TFPLUS (or equivalent) control and AC servo drives, the machine supports multi-process machining in a single clamping for shafts and discs.
Machining range:
Technical features:
Operations & capabilities:
Applications & industries:
Options & remarks:
The DT-series slant-bed CNC lathe is a heavy-duty turning center with an integrally cast bed and 45° inclined guideways for high rigidity. Equipped with FANUC 0i-TFPLUS (or equivalent) control and AC servo drives, the machine supports multi-process machining in a single clamping for shafts and discs.
Machining range:
- Bed swing diameter: Ø480 mm — Ø680 mm (depending on model)
- Max. turning diameter (shaft/disc): up to Ø500 mm (model dependent)
- Max. turning length: 300 mm — 1100 mm depending on variant
- Spindle speed: up to 5,000 rpm on selected models
Technical features:
- Series: DT (DT-30, DT-30H, DT-40, DT-40H, DT-40HY, DT-40Plus, DT-50, DT-50H)
- Bed: integrally cast slant bed with 45° inclined guideways
- Control & drive: FANUC 0i-TFPLUS (or equivalent), AC servo drive
- Spindle: A2-5 / A2-6 / A2-8 nose options; bore up to Ø87 mm on some models
- Chuck sizes: 6"–10" depending on model; through-hole hydraulic chuck available
- Spindle motor power: typically 7.5–18.5 kW depending on variant
- Tooling: 12-position hydraulic or servo turret; live tooling available on specific models
- Axes travel & feeds: X/Z rapid traverse typically 30/30 m/min; X and Z travels vary by model
- Tailstock quill stroke: 140–300 mm depending on model
Operations & capabilities:
- Simultaneous operations: turning, drilling, boring, reaming and milling in one setup
- Suitable for shafts, discs and bar work (bar capacity up to Ø73 mm with through-hole chuck)
- High productivity configurations available with live tooling and duplex/extended Z versions
Applications & industries:
- Automotive components manufacturing
- Mould and tooling production
- Bearings and rotating parts
- Mining and heavy machinery components
Options & remarks:
- Control options: FANUC or equivalent international systems
- Spindle variants: electric spindle options and higher-capacity bores
- Tooling options: live tooling, VDI tooling, duplex/Z-extended variants for long parts
- Provide part drawing and production requirements to confirm optimal model and configuration
Other Meijin Machinery Equipment (Dalian) Co., Ltd. products
Vertical Lathe
