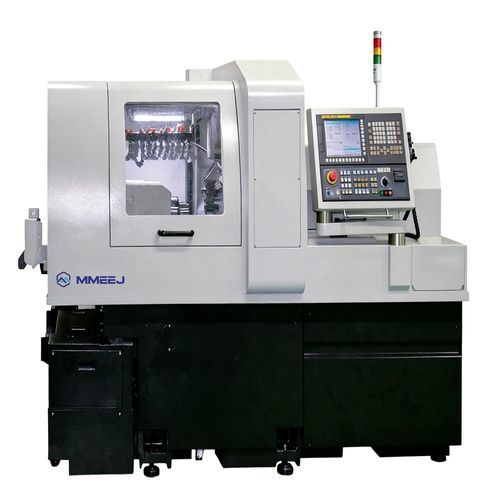

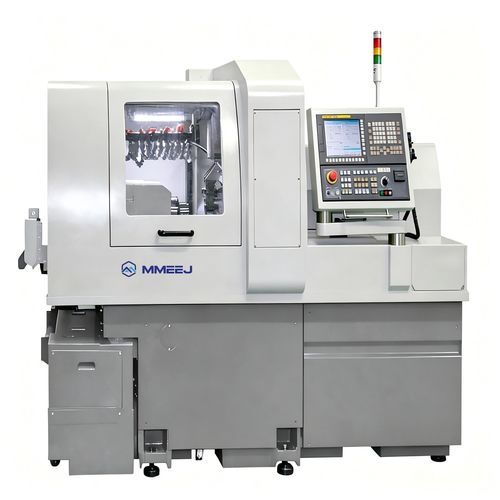

CNC Swiss lathe XDI series

multi-spindlefor small parts productionfor long workpieces

Product overview:
The XDI series Swiss-type turning and milling lathe performs multiple machining operations (turning, milling, drilling, tapping, indexing) in a single setup. The spindle moves closer to the cutting tool to minimize deformation of long, slender shafts and enhance dimensional accuracy, making the machine suited to high-volume production of small, complex precision parts.

Applications:

• Shafts and long slender components for automotive, electronics and hardware
• Medical components and irregular-shaped precision parts
• High-volume small-part production requiring multi-operation machining

Key specifications:

• Models: XDI 26 and XDI 32 (XDI series)
• NC system: Fanuc-31iB
• Max machining diameter: Ø26 mm (XDI 26) / Ø32 mm (XDI 32)
• Z1 stroke: 350 mm (H) / 100 mm (N)
• Main spindle speed: 8,000 rpm (XDI 26) / 6,500 rpm (XDI 32)
• Main / sub spindle motors: 2.2/5.5 kW (where specified)
• Turning tool capacity: □16 mm × 7 (4+3)
• Front tool holders: ER16M × 4 (Front 4 / Rear 7)
• Cross drill: ER16 × 7 (4+3), 6,000 rpm; motor 1.0 kW (XDI 26) / 2.2 kW (XDI 32)
• B-axis cross: ER16 × 4 (Front 4 / Rear 4), 6,000 rpm
• Back tool: ER16 × 9 (Fixed 3 + Driven 6) with optional configuration (Driven 6 + Cross 3 + Turning 2)
• Sub spindle speed: 8,000 rpm (XDI 26) / 6,500 rpm (XDI 32); sub spindle motor: 2.2/5.5 kW
• Machine size (L×W×H): 2,910 × 1,710 × 2,010 mm; Weight: 6,300 kg
• Power consumption: 13.5 KVA (10.8 kW) or 16.2 KVA (13 kW) depending on configuration
• Air flow rate: 120–150 L/min

Options and configurations:

• Dual spindle or back spindle for simultaneous front/back machining to shorten cycle time
• Optional driven tools, cross tools and turning-tool combinations for flexible tooling layouts
• Selectable motor and spindle configurations to match production requirements
