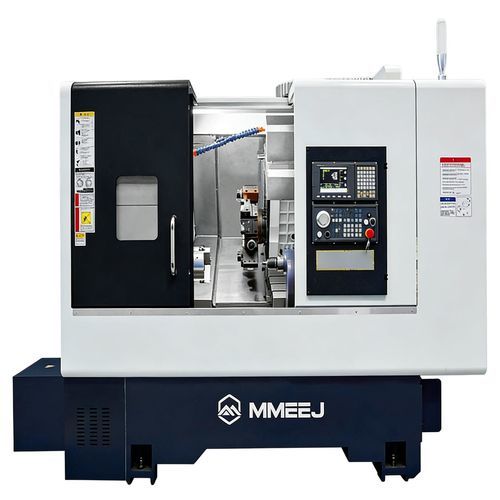

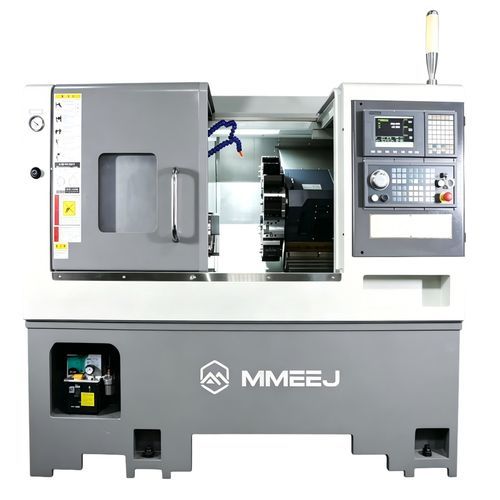

CNC milling-turning center CTXY series

horizontal3-axisroller bed

Machine description:

• 1. Integrated cast high-rigidity bed with large anti-vibration damping and small deformation.
• 2. 30° slant bed design makes it convenient for the operator to install and remove workpiece, and easy for chips removal.
• 3. Servo power turret, fast tool change.
• 4. Full-proof internal protection, effectively separately the machining area with better oil-proof, water-proof and dust-proof effect.
• 5. Programmable tailstock with fast and slow forward function.
• 6. With turning and milling function.
• 7. Customer-provided images can be matched with the machine.
• 8. Images of workable parts are available.

Technical data (table):
Item | Model | Unit | CTXY46 | CTXY52 | CTXY72
Control System | Control system (standard) | / | SYNTEC 22TB | SYNTEC 22TB | SYNTEC 22TB
Control system (optional) | / | / | OP1:FANUC Oi-TFPLUS /OP2:SIEMENS 828D | OP1:FANUC Oi-TFPLUS /OP2:SIEMENS 828D | OP1:FANUC Oi-TFPLUS /OP2:SIEMENS 828D
Capacity - Max. Swing diameter (Disk) | mm | 700 | 700 | 700
Max. processing diameter (Disk) | mm | 350 | 350 | 350
Max. processing length | mm | 520 | 520 | 520
X axis travel (Diameter) | mm | 200 | 200 | 200
Z axis travel | mm | 550 | 550 | 550
Y axis travel | mm | ±45(90) | ±45(90) | ±45(90)
Tailstock travel | mm | 500 | 500 | 500
Spindle - Spindle taper | / | A2-5 | A2-6 | A2-8
Hydraulic chuck size | inch | 6 | 8 | 10
Spindle bore diameter | mm | 56 | 62 | 85
Max. bar through diameter | mm | 45 | 51 | 71
Spindle type | / | Electric spindle | Mechanical spindle | Mechanical spindle
Spindle motor power | KW | 11 | 11 | 11
Spindle driving power | KW | 18.5 | 18.5 | 18.5
Max. spindle speed | rpm/min | 5000 | 3500 | 3000
Spindle rated torque S1 (continuous) | NM | 37 | 73 | 70
Max. spindle torque S3 (in 30min) | NM | 84 | 100 | 95.5
Power Head Turret - Tool holder/diagonal size | / | 12/370 | 12/370 | 12/370
Adjust tool changing time | s | 2 | 2 | 2
Tailstock - Tailstock taper | / | MT5 | MT5 | MT5
XY/Z axis - XY/Z Screw diameter | / | 32/32/32 | 32/32/32 | 32/32/32
X/Z Guides way width | / | 35/35/35 | 35/35/35 | 35/35/35
Guides way type | / | Roller | Roller | Roller
X axis motor power | KW | 1.8 | 1.8 | 1.8
Z axis motor power | KW | 1.8 | 1.8 | 1.8
Y axis motor power | KW | 1.8 | 1.8 | 1.8
X axis rapid moving speed | m/min | 25 | 25 | 25
Y axis rapid moving speed | m/min | 10 | 10 | 10
Z axis rapid moving speed | m/min | 25 | 25 | 25
Accuracy - X/Y/Z axis repeat positioning accuracy | mm | 0.006 | 0.006 | 0.006
Spindle nose rotate runout accuracy | mm | 2 | 2 | 2
Tool - Inner hole tool holder | / | φ25/φ32 (4pcs) | φ25/Φ32 (4pcs) | φ25/φ32 (4pcs)
0.D. tool holder | / | Φ25 (3pcs) | Φ25 (3pcs) | Φ25 (3pcs)
Axial tool holder | / | Φ25 (1pc) | Φ25 (1pc) | Φ25 (1pc)
Live head tool (Axial live: AL; Radial live: RL) | / | 2×ER32AL / 2×ER32RL | 2×ER32AL / 2×ER32RL | 2×ER32AL / 2×ER32RL
Live head motor power | kw | 2.9 | 2.9 | 2.9
Live head motor speed | rpm/min | 4000 | 4000 | 4000
Live head max drill diameter | mm | 16 | 16 | 16
Live head max tap diameter | mm | M12x1.75P | M12x1.75P | M12×1.75P
Max tool holder capacity | qty | 12 | 12 | 12

Caractéristiques / spécifications techniques:

• Série/Modèles: CTXY series (CTXY46, CTXY52, CTXY72).
• Type: Turn & Mill lathe (small size series) — turning and milling functions integrated.
• Bed: Integrated cast high-rigidity bed, 30° slant bed design for easier loading/unloading and chip removal.
• Control options: Standard SYNTEC 22TB; optional FANUC Oi-TFPLUS or SIEMENS 828D.
• Max. swing (disk): 700 mm; Max. processing diameter (disk): 350 mm; Max. processing length: 520 mm.
• Axis travels: X (diameter) 200 mm; Z 550 mm; Y ±45(90).
• Spindle: taper A2-5 / A2-6 / A2-8 depending on model; spindle motor 11 kW; spindle drive 18.5 kW.
• Max. spindle speed: 5000 / 3500 / 3000 rpm (models respectively).
• Spindle bore / max bar through: 56/45 mm (CTXY46), 62/51 mm (CTXY52), 85/71 mm (CTXY72).
• Turret: servo power turret, 12 tool positions, tool holder diagonal 12/370, tool change time ~2 s.
• Tailstock: programmable, MT5 taper, travel 500 mm.
• Guides: roller guides; XY/Z screw 32 mm; guide width 35 mm.
• Rapid traverse speeds: X/Z 25 m/min; Y 10 m/min.
• Positioning accuracy: repeatability X/Y/Z 0.006 mm; spindle nose runout 2 mm.
• Live tooling: 2×ER32 AL/RL, live head motor 2.9 kW at 4000 rpm, max drill Ø16 mm, max tap M12x1.75P.
• Max tool holder capacity: 12.
