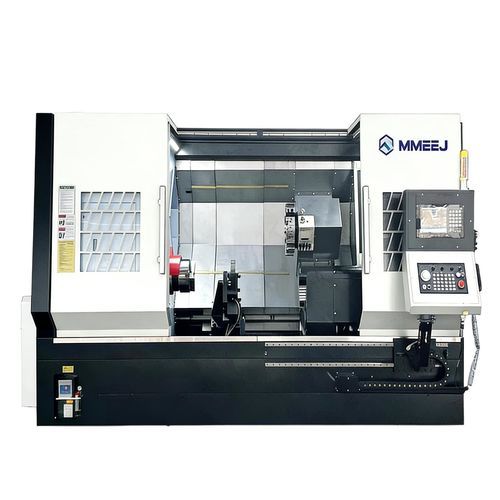

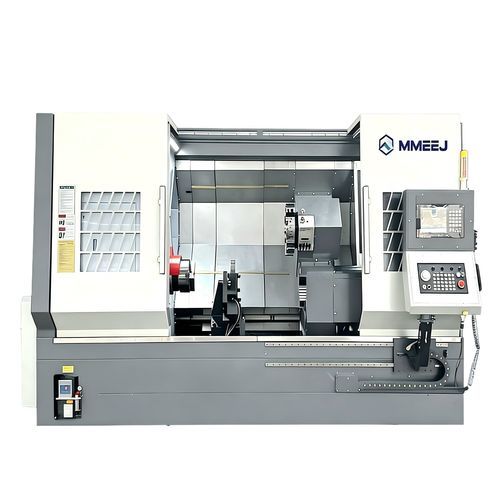

CNC lathe TCK series

horizontal3-axisinclined bed

Product overview:
The TCK series is a heavy-duty horizontal turning center engineered for turning and milling large pipes and shafts. It supports 2-axis to Y-axis operations and enables complete machining of large-diameter parts in a single setup to improve processing efficiency.

Machining range:
Maximum turning diameter: 900 mm; maximum turning length: 6060 mm. Inclined bed design improves stability and chip evacuation.

Key specifications:

• Swing over bed: φ780 / φ850 mm (model dependent)
• Swing over saddle: φ500 / φ630 mm (model dependent)
• Chuck sizes: 12 / 15 / 18 / 21 / 24 in
• Travels: X 350 mm; Y ±75 mm; Z options 1000 / 1500 / 2000 / 3000 / 4000 / 5000 mm
• Rapid traverse: X 16 mm/min; Y 10 mm/min; Z 16 mm/min
• Main spindle: motor 22 kW (optionally 30 kW); spindle ratio 1:3 (gearbox option 1:8)
• Spindle through‑hole / bearing options: φ88 / φ105 / φ132 / φ181 / φ220 (model dependent)
• Turret: 12 stations; OD tool 32×32 mm; max boring bar 50 mm; indexing 0.5 s
• Rotary tool: BMT65 up to 4000 rpm; motor 5.5 / 7.5 kW
• Tailstock: travel up to 5100 mm (model dependent); sleeve Ø150 / Ø160 mm; sleeve travel 180 mm; taper MT5 / MT6

Typical applications:

• Oil & gas pipeline components and large‑diameter pipes
• Flanges and large shafts for construction machinery
• Hydraulic components, aerospace and shipbuilding parts

Configurations and options:

• Multiple Z‑axis lengths and tailstock configurations
• Choice of chuck sizes and spindle through‑hole diameters
• Optional spindle gearbox and higher motor power
• Turret and rotary tool power/speed variants

Ordering and support:
Available for custom configuration to machining requirements. Specify required spindle, chuck, Z‑axis length and control options for a tailored offer.
