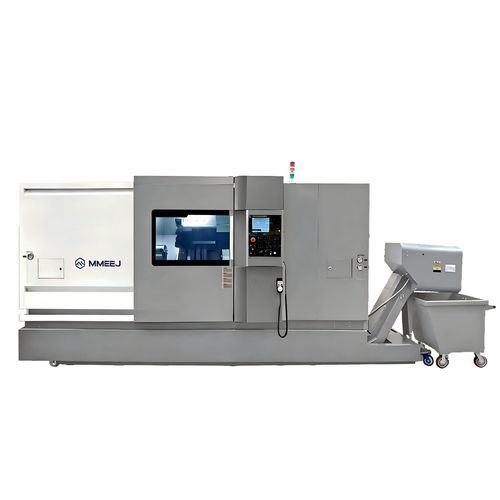

CNC lathe DL-M series

horizontalslant bedA2-8

Product Presentation:
The DL-M series slant-bed CNC lathe is developed and manufactured with advanced international technology. The main bed is integrally cast with a 45° inclined guideway layout to increase rigidity. The machine adopts FANUC 0i-TFPLUS control (or equivalent high-quality systems) and AC servo drives for axis motion, ensuring intuitive operation and reliable performance. It performs turning, drilling and milling operations on shaft- and disc-shaped parts and is used across automotive components, moulds, bearings and mining machinery. Multiple operations (turning, boring, drilling, reaming) can be completed in one clamping.

Features:

• 45° inclined bed guideways for improved rigidity
• 12-position turret with options: 12T hydraulic or 12T live-tooling turret
• High-capacity, high-rigidity sliding guideways
• Modular design with multiple configuration options
• Control system: FANUC 0i-TFPLUS (or equivalent)
• AC servo drive for precise axis control

Machining Range:
Max. swing over bed: φ520 – φ900; Max. turning length: 1000 mm – 3000 mm depending on model.

DL series - Technical table (values per model):
Product model | Unit | DL-25M | DL-25MH | DL-32M | DL-32MH | DL-40M | DL-40MH
Max. Swing diameter over bed | mm | φ520 | (—) | φ680 | (—) | φ900 | (—)
Max. turning diameter (Shaft/Disc) | mm | φ310/φ520 | φ310/φ500 | φ440/φ630 | φ440/φ590 | φ660/φ800 | φ660/φ760
Max. turning length | mm | 1000/1500 | 1000/1500 | 1000/1500/2000/3000 | 950/1450/1950/2950 | 1000/1500/2000/3000 | 950/1450/1950/2950
Chuck size | inch | 10 | 10 | 15 | 15 | 15 | 15
Type of spindle nose | ( — ) | A2-8 | A2-8 | A2-11 | A2-11 | A2-11 | A2-11
Spindle speed range | rpm | 3500 | 3500 | 2000 | 2000 | 1500 | 1500
Spindle bore | mm | φ87 | φ87 | φ100 | φ100 | φ132 | φ132
Max bar capacity (with through-hole hydraulic chuck) | mm | φ74 | φ74 | φ80 | φ80 | φ80 | φ80
Spindle motor power | kW | 15/18.5 | 18.5/22 | 22/30 | 22/30 | 22/30 | 22/30
Max. travel of X axis | mm | 260 | 260 | 375 | 375 | 435 | 435
Max. travel of Z axis | mm | 1040/1600 | 1040/1600 | 1020/1520/2020/3020 | 1020/1520/2020/3020 | 1020/1520/2020/3020 | 1020/1520/2020/3020
Rapid traverse of X/Z axis | m/min | 12/12 | 12/12 | 12/16 | 12/16 | 12/16 | 12/16
Turret type and tool numbers | ( — ) | 12T Hydraulic | 12T live tooling turret | 12T Hydraulic | 12T live tooling turret | 12T Hydraulic | 12T live tooling turret
Tool shank size | mm | 25×25 | 25×25 | 32×25 | 32×25 | 32×25 | 32×25
Indexing time (adjacent/farthest) | s | 0.8/2.5 | 0.8/2.5 | 0.94/1.33 | 0.94/1.33 | 1.2/4.0 | 1.2/4.0
Diameter of tailstock quill | mm | φ100 | φ100 | φ160 | φ160 | φ160 | φ160
Tailstock quill stroke | mm | 139 | 139 | 180 | 180 | 180 | 180

Specifications / Technical data:

• Series: DL-M series (DL-25M, DL-25MH, DL-32M, DL-32MH, DL-40M, DL-40MH)
• Bed: integral casting with 45° inclined guideways for high rigidity
• Control system: FANUC 0i-TFPLUS or equivalent
• Drives: AC servo drives for reliable axis control
• Turret: 12-position (hydraulic or live-tooling variants)
• Max. swing over bed: 520 / 680 / 900 mm depending on model
• Max. turning diameter (shaft/disc): up to φ760–φ800 depending on model
• Turning length options: 1000, 1500, 2000, 3000 mm (model dependent)
• Chuck sizes: 10" (DL-25 series), 15" (DL-32 / DL-40 series)
• Spindle nose: A2-8 (DL-25), A2-11 (DL-32 / DL-40)
• Spindle speeds: up to 3500 / 2000 / 1500 rpm depending on model
• Spindle bore: φ87 / φ100 / φ132 depending on model
• Max. bar capacity (through-hole hydraulic chuck): up to φ80 mm
• Spindle motor power: 15–30 kW depending on model/configuration
• X axis travel: 260–435 mm depending on model
• Z axis travel: 1020 / 1520 / 2020 / 3020 / 1040 / 1600 mm configurations
• Rapid traverse: 12 m/min (X) and 12–16 m/min (Z)
• Tool shank sizes: 25×25 mm (DL-25), 32×25 mm (DL-32 / DL-40)
• Tailstock quill diameter/stroke: φ100 / 139 mm (DL-25), φ160 / 180 mm (DL-32 / DL-40)
• Typical applications: automotive parts, moulds, bearings, mining machinery — suited to shaft and disc parts requiring multiple operations in one clamping
