Linear displacement sensor capaNCDT 6200non-contactcapacitive4-20mA
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- capacitive
- Output signal
- 4-20mA, digital, Ethernet, ProfiNet, EtherCAT, 0-10 V
- Measurement object
- metal
- Applications
- industrial, OEM applications, for process automation
- Other characteristics
- rugged, high-precision, high-resolution, high-speed, multi-channel
- Measuring range
Max.: 10 mm
(0.39 in)Min.: 0.05 mm
(0 in)- Linearity
Max.: 0.2 %
Min.: 0.03 %
- Measuring rate
Max.: 20,000 Hz
Min.: 20 Hz
- Supply voltage
Max.: 36 V
Min.: 12 V
- Ambient temperature
Max.: 200 °C
(392 °F)Min.: -50 °C
(-58 °F)
Description

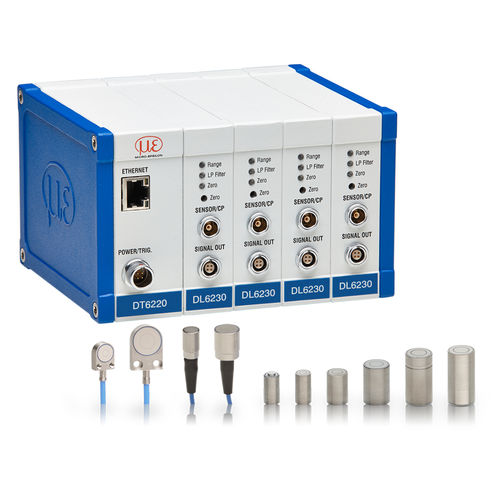

The capaNCDT 6200 is the first multi-channel measurement system that is entirely modular. The controller can easily be extended up to four synchronized channels to support flexible applications. All capacitive displacement sensors by Micro-Epsilon can be operated using the capaNCDT 6200 controller. The integrated Ethernet interface supports parameterization and measurements via web interface. The DL6230 demodulator is available for high resolution measurements. For high-speed measurements up to 20kHz, the capaNCDT 6222 system is available.
