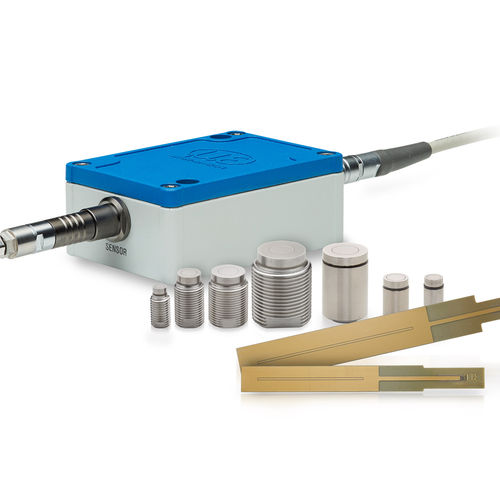

Linear displacement sensor capaNCDT 61x0/IP
non-contactcapacitiveanalog

linear displacement sensor
linear displacement sensor
Add to favorites
Compare this product


Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
capacitive
Output signal
analog
Protection class
IP68
Applications
industrial, rugged, for process automation
Other characteristics
high-precision, rugged
Measuring range

Min.: 0.5 mm
(0.02 in)

Max.: 6 mm
(0.24 in)

Measuring rate

Min.: 2 Hz

Max.: 1,000 Hz

Description

The capaNCDT 61x0/IP capacitive displacement measuring system is suitable for inline quality assurance of production processes, and for control of plant and machinery. Protected to IP68, this measuring system is therefore suitable for many industrial measurement tasks. Fluctuating temperatures and magnetic fields are no match for this capacitive system. The new capaNCDT 61x0/IP capacitive measuring system is specially designed for industrial measurement tasks where high precision is required. It detects parameters such as displacement, distance, deflection, expansion, and deformation of conductive targets. The capaNCDT 61x0/IP includes a sensor, sensor cable and controller. Calibrated at the factory, the system is immediately ready for use with no on site calibration necessary. Even after replacing the sensors, no recalibration is required. Data output is via current, voltage or digital RS485 interface. The capaNCDT 61x0/IP is specially tailored to the requirements of industrial environments. Classified to IP68, it is ideally suited to industrial measurement applications. Its aluminum die-cast housing protects the controller from dust and humidity. As the sensor cable is extremely robust, it provides resistance to treading and high temperatures. Designed for large distances, the cable can be used up to 8 m. More than 15 different sensor models are available for different measurement tasks. Flat sensors, cylindrical sensors and models with thread are the three basic sensor types from which the customer can choose depending on the respective installation scenario.
