Film thickness gauge capaNCDT TFG6220for thin materialsbenchtopcapacitive
Add to favorites
Compare this product
Characteristics
- Applications
- for thin materials, film
- Type
- benchtop
- Technology
- capacitive
- Other characteristics
- precision, with data logger, high-resolution, computerized, quality control
- Measurement accuracy
0.2 µm
- Measuring rate
100 Hz
- Resolution
10 nm
- Ambient temperature
Min.: 18 °C
(64.4 °F)Max.: 25 °C
(77 °F)
Description
Overview
The capacitive TFG6220 system measures the thickness of electrically conductive films (e.g. battery films) with high precision. A vacuum device holds and smooths the sample to provide a wrinkle‑free reference surface. The unit is pre‑assembled for quick deployment and intended for offline random‑sample quality inspection.
Key functionality
Applications
Offline, fast inspection of conductive film thickness for quality control and process monitoring, e.g. battery films.
Technical specifications
The capacitive TFG6220 system measures the thickness of electrically conductive films (e.g. battery films) with high precision. A vacuum device holds and smooths the sample to provide a wrinkle‑free reference surface. The unit is pre‑assembled for quick deployment and intended for offline random‑sample quality inspection.
Key functionality
- Vacuum smoothing of the film to remove wrinkles and ensure repeatable positioning

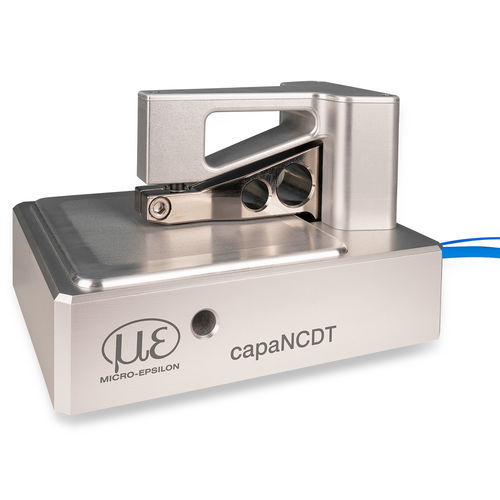

- Measuring bracket with two capacitive sensors and an integrated measuring insert for simple referencing
- Data acquisition and visualization via sensorTOOL (web interface)
Applications
Offline, fast inspection of conductive film thickness for quality control and process monitoring, e.g. battery films.
Technical specifications
- Resolution: 10 nm
- Repeatability: 1 µm
- Measurable film thickness: < 1 mm
- Measuring principle: evaluating the readings of the two capacitive sensors
- Sample handling: external vacuum device for smoothing and clamping
- Configuration: pre‑assembled, ready for operation
- Software: sensorTOOL for visualization and settings
