Linear displacement sensor capaNCDT 61x4

non-contactcapacitiveanalog

Overview
The capaNCDT 61x4 is an active capacitive system for displacement, distance and position measurements. It consists of a sensor with integrated preamplifier, a robust sensor cable and a compact controller. The system is factory-calibrated for the required cable length and ready for immediate use without on-site calibration. Cable lengths up to 15 m are available, making the system suitable for long signal transmission paths in automated environments.

Variants / Controllers

• capaNCDT 6114: active capacitive system with analog output 0...10 V (short-circuit protected). Options: ±5 V, 10...0 V. Designed for long signal transmission with cable up to 15 m.
• capaNCDT 6124: active capacitive system with RS485 interface in addition to the analog output; intended for applications requiring robust digital communication over long cable lengths.

Sensor

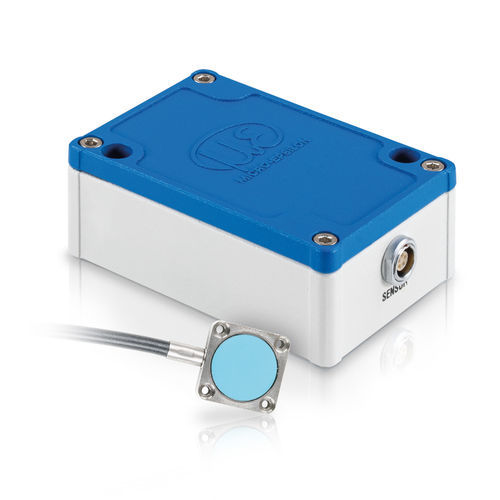

The active flat sensor features a stainless-steel housing and a ceramic sensing element. The integrated cable reduces installation space and improves mechanical stability. Flexible yet sturdy cabling facilitates integration into moving applications such as robots and drag chains.

Applications

• Robot-mounted measurements (moving tasks, cables in motion)
• Measurements with drag chain guidance
• Industrial automation
• Machine building
• Semiconductor production

Characteristics / Technical specifications

• Measuring range: 2 mm
• Linearity: max. 2 µm
• Resolution: max. 0.3 µm
• Outputs: analog (0...10 V; options ±5 V, 10...0 V) or RS485 (depending on variant)
• Maximum sensor cable length: up to 15 m (factory-calibrated)
• Robust sensor cable suitable for drag chains and robots
• Integrated preamplifier for improved signal quality
• Ready to use without on-site calibration
