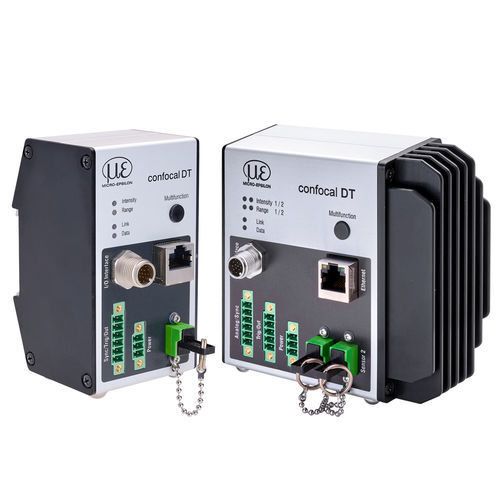

Linear displacement sensor confocalDT IFC2416/IFC2417non-contactconfocal chromaticEtherCAT
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- confocal chromatic
- Output signal
- 4-20mA, digital output, Ethernet, EtherCAT, 0-5 V, 0-10 V
- Measurement object
- metal, transparent, reflecting, red-hot glowing, organic
- Protection class
- IP40
- Applications
- industrial, OEM applications, for process automation, for small spaces
- Other characteristics
- compact, rugged, high-precision, high-resolution, high-speed, rectangular, multi-channel, single-channel
- Measuring range
Max.: 30 mm
(1.18 in)Min.: 0.1 mm
(0 in)- Linearity
0.02 %
- Measuring rate
Max.: 25,000 Hz
Min.: 100 Hz
- Supply voltage
24 V
- Ambient temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)
Description
The confocalDT IFC2416 / IFC2417 controllers impress with a high measuring rate of 25 kHz and exceptional light intensity. This enables precise and stable distance and thickness measurements at high speed – even on challenging materials and surfaces. Their compact design makes them the ideal solution for high-resolution measurements in almost all industrial sectors – from production lines to semiconductor machine construction. Thanks to the multi-peak option, up to 5 layers of transparent objects can be detected. The controllers are compatible with all Micro-Epsilon sensors, so that the measuring range, offset distance and special properties such as vacuum suitability, measuring angle or beam path can be selected as required.
