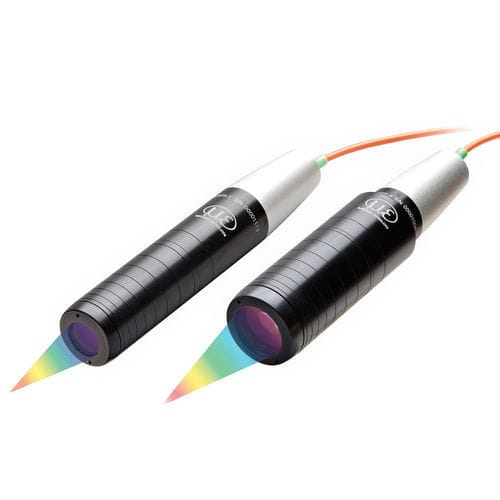

Chromatic confocal sensor confocalDT IFS2405

for thickness measurementfor distance measurementnon-contact

Overview
confocalDT IFS2405 sensors are designed for high-precision distance and single-sided thickness measurements. The series features large offset distances and tolerance to tilt angles, making it suitable for measuring distances and single-sided thickness of transparent materials in industrial environments.
Key features

• Distance and single-sided thickness measurement of transparent materials
• High sensitivity and fine resolution
• Tolerant to tilt angles
• High offset distances for flexible mounting
• Multiple measuring range variants available

Available measuring ranges and performance

• Measuring ranges (mm): 0.3 | 1 | 3 | 6 | 10 | 28 | 30
• Linearity: up to 0.1 µm (standard variants)
• Resolution: down to 4 nm (standard variants)

Variant: confocalDT IFS2405/90-6

• Measuring range (mm): 6
• Linearity: max. 1.5 µm
• Resolution: max. 34 nm
• 90° optics for installation in restricted spaces
• Suitable for distance and single-sided thickness measurement
