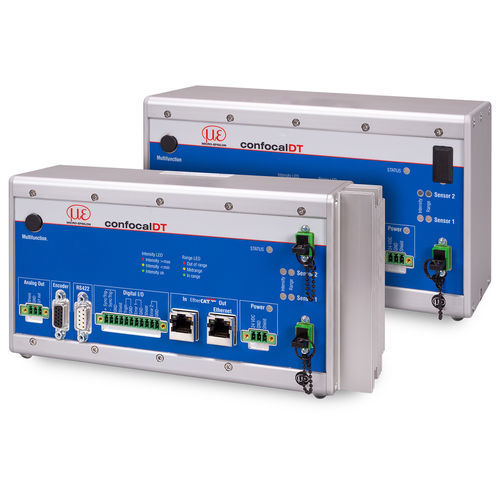

Linear displacement sensor confocalDT IFC2465/66non-contactconfocal chromaticEtherCAT
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- confocal chromatic
- Output signal
- 4-20mA, digital output, Ethernet, ProfiNet, EtherCAT, 0-10 V
- Measurement object
- metal, transparent, reflecting, red-hot glowing
- Protection class
- IP40
- Applications
- industrial, OEM applications, for process automation
- Other characteristics
- high-precision, high-resolution, high-speed, rectangular, multi-channel, single-channel
- Measuring range
Min.: 0.1 mm
(0 in)Max.: 30 mm
(1.18 in)- Linearity
0.03 %
- Measuring rate
Min.: 100 Hz
Max.: 30,000 Hz
- Supply voltage
24 V
- Ambient temperature
Min.: 5 °C
(41 °F)Max.: 50 °C
(122 °F)
Description
Product overview
The confocalDT 2465 and 2466 confocal controllers are used for fast, high-precision distance and thickness measurements and achieve resolutions in the nanometer range. These multi-peak models simultaneously measure the thickness of up to 5 transparent layers. The controllers are characterized by high luminous intensity combined with a high measuring rate of up to 30 kHz. This enables high signal intensity even on dark or rough surfaces. The fast exposure control perfectly compensates for changing surfaces.
Models
Compatibility
Controllers are compatible with every IFS sensor, enabling reliable solutions for numerous measurement tasks.
Ease of use via web interface
Configuration and setup are performed via a user-friendly web interface accessible via Ethernet. The web interface provides setup and configuration options and includes an expandable materials database for storing material parameters.
Technical specifications
The confocalDT 2465 and 2466 confocal controllers are used for fast, high-precision distance and thickness measurements and achieve resolutions in the nanometer range. These multi-peak models simultaneously measure the thickness of up to 5 transparent layers. The controllers are characterized by high luminous intensity combined with a high measuring rate of up to 30 kHz. This enables high signal intensity even on dark or rough surfaces. The fast exposure control perfectly compensates for changing surfaces.
Models
- IFC2465: single-channel controller
- IFC2466: dual-channel controller
Compatibility
Controllers are compatible with every IFS sensor, enabling reliable solutions for numerous measurement tasks.
Ease of use via web interface
Configuration and setup are performed via a user-friendly web interface accessible via Ethernet. The web interface provides setup and configuration options and includes an expandable materials database for storing material parameters.
Technical specifications
- Resolution: nanometer range
- Multi-peak measurement: simultaneously measures thickness of up to 5 transparent layers
- Measuring rate: up to 30 kHz
- High luminous intensity for strong signal even on dark or rough surfaces
- Fast exposure control to compensate for changing surface conditions
- Available as single-channel (IFC2465) and dual-channel (IFC2466)
- Compatible with all IFS sensors
- Configuration via Ethernet-accessible web interface
- Expandable materials database in web interface
