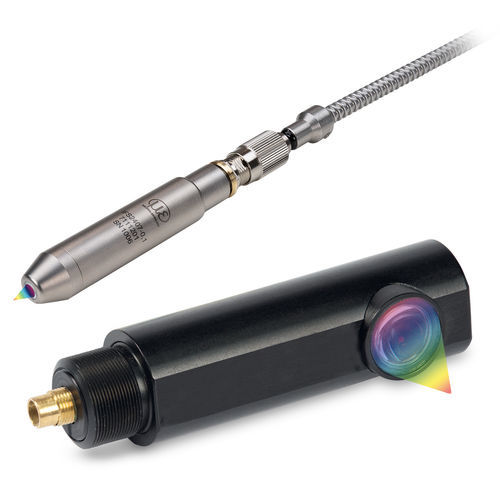

Chromatic confocal sensor confocalDT IFS2407for thickness measurementfor distance measurementnon-contact
Add to favorites
Compare this product
Characteristics
- Type
- chromatic
- Applications
- for distance measurement, for thickness measurement
- Other characteristics
- non-contact
- Measuring distance
Min.: 0.1 mm
(0 in)Max.: 6 mm
(0.24 in)
Description
Product overview
Key features
High temperature sensors: confocalDT IFS2407-xHT
confocalDT IFS2407-0,1
confocalDT IFS2407-0,8
confocalDT IFS2407-1,5
confocalDT IFS2407-3
confocalDT IFS2407-6
confocalDT IFS2407/90-0.3 (90° beam path)
Caractéristiques / spécifications techniques
- confocalDT IFS2407 sensors are designed for high precision measurement of distance, roughness and thickness.
- Confocal chromatic sensors with high numerical aperture, a small light spot diameter and tolerance for large measurement angles, enabling roughness measurements.
- Sensors deliver nanometer accuracy and are available in multiple variants for different measuring ranges and applications.
Key features
- High numerical aperture (NA) options including light-intensive variants (NA > 0.7)
- Very small measurement spot sizes (down to ~3 µm and 5.5 µm depending on model)
- Large permissible measuring angles for measurements on curved or structured surfaces
- Nanometer-class resolution and high linearity
- Variants suitable for vacuum and high-temperature operation
High temperature sensors: confocalDT IFS2407-xHT
- Reliable measurement at ambient temperatures up to 200 °C
- Measuring ranges (mm): 0.8 | 2 | 4
- Temperature range: max. 200 °C
- Linearity: max. < ±0,18 µm
- Resolution: max. < 6 nm
- Stainless steel housing (1.4404)
- Vacuum-suitable up to UHV
- Available in 90° variants
confocalDT IFS2407-0,1
- Measuring range (mm): 0.1
- Linearity: max. 0.05 µm
- Resolution: max. 3 nm
- Ideal for distance and roughness measurements
- Light-intensive sensor variant for high speed processes available (NA 0.7)
- Small measurement spot size: 3 µm
- High sensitivity and large measuring angle
- Thickness measurement of transparent objects from 5 µm
confocalDT IFS2407-0,8
- Measuring range (mm): 0.8
- Linearity: max. 0.2 µm
- Resolution: max. 24 nm
- Small light spot
- Space-saving sensor design
- Precise distance measurements even on curved surfaces
- Ideal for thickness measurements of thin layers
confocalDT IFS2407-1,5
- Measuring range (mm): 1.5
- Extremely small measurement spot of 5.5 µm
- Measuring angle > ±43°
- Light-intensive model (NA > 0.7)
- High precision measurement on curved and mirroring surfaces
- Stable measurement on structured surfaces
confocalDT IFS2407-3
- Measuring range (mm): 3
- Linearity: max. 0.5 µm
- Resolution: max. 13 nm
- Large offset distance approx. 28 mm
- Max. measuring angle ±30°
- Ideal for measurements on curved and reflecting surfaces
confocalDT IFS2407-6
- Measuring range (mm): 6
- Linearity: max. 1 µm
- Resolution: max. 15 nm
- Large offset distance approx. 32 mm
- Ideal for fast, high-precision measurements on challenging surfaces
- High light intensity even on dark / poorly reflecting surfaces
confocalDT IFS2407/90-0.3 (90° beam path)
- Measuring range (mm): 0.3
- Linearity: max. 0.15 µm
- Resolution: max. 6 nm
- Ideal for displacement and roughness measurements
- Small measurement spot 6 µm
- High sensitivity and large measuring angle
- 90° beam path, ideal for mounting in confined installation spaces
Caractéristiques / spécifications techniques
- Series / model: IFS2407
- Available measuring ranges: 0.1 mm, 0.3 mm, 0.8 mm, 1.5 mm, 3 mm, 6 mm (and HT variants with 0.8 | 2 | 4 mm)
- Linearity (depending on model): down to 0.05 µm; examples: 0.05 µm (0.1 mm), 0.15 µm (0.3 mm), 0.2 µm (0.8 mm), 0.5 µm (3 mm), 1 µm (6 mm)
- Resolution (depending on model): down to 3 nm; examples: 3 nm (0.1 mm), 6 nm (0.3 mm), 13 nm (3 mm), 15 nm (6 mm), 24 nm (0.8 mm)
- Measurement spot sizes: from approx. 3 µm up to ~6 µm or 5.5 µm (model-dependent)
- Measuring angles: up to > ±43° for some models; typical max angles noted (e.g. ±30° for 3 mm model)
- Offset distances (examples): approx. 28 mm (3 mm), approx. 32 mm (6 mm)
- High numerical aperture / light-intensive variants available (NA up to > 0.7)
- High temperature variant (IFS2407-xHT): ambient measurement up to 200 °C; stainless steel housing 1.4404; vacuum-capable up to UHV
- Thickness measurement capability: transparent objects from 5 µm (0.1 mm variant)
- Typical applications: distance, roughness and thickness measurement on curved, structured, reflecting or poorly reflecting surfaces
