Programmable gain amplifying integrated circuit MCP6 series

voltageswitchinganalog

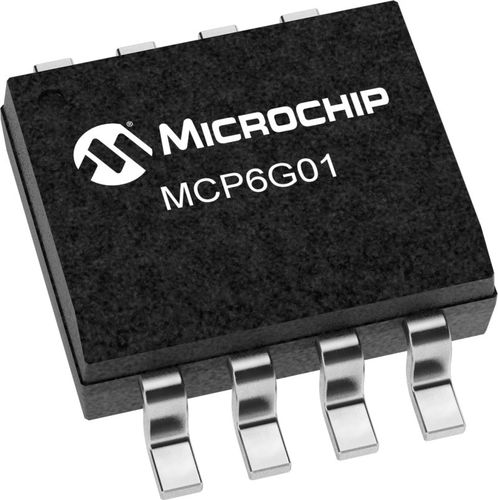

Our Programmable Gain Amplifier (PGA) portfolio includes low-cost, general-purpose PGAs for cost-sensitive applications. For applications that require higher levels of accuracy, we offer a family of precision programmable gain amplifiers that delivers higher performance. We also offer families that support a standard Serial Peripheral Interface (SPI) and on-chip multiplexer as well as devices that offer pin-programmable gain options. These highly integrated devices are excellent options for space-constrained applications. Integrated mux reduces design complexity by providing up to eight input channels Factory trimming provides a low maximum input voltage as low as 275 µV to maintain high levels of gain accuracy Selectable gains up to 32x with eight gain options provide additional system flexibility MCP6G0x series offers pin-selectable gains of 1x, 10x and 50x without the use of external resistors, reducing component count and solution size
