Power amplifying integrated circuit MCP6C02
currentvoltagecommon mode

Power amplifying integrated circuit - MCP6C02 - Microchip Technology Inc. - current / voltage / common mode
Power amplifying integrated circuit - MCP6C02 - Microchip Technology Inc. - current / voltage / common mode

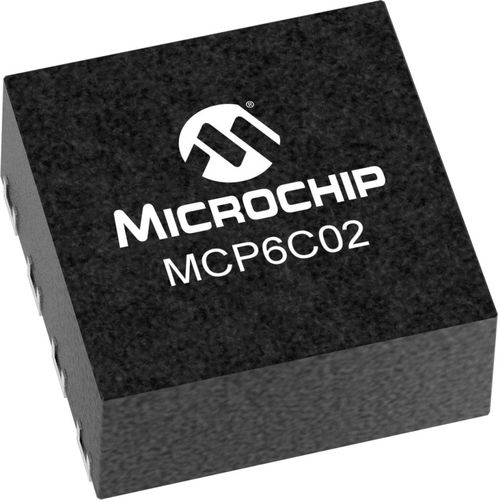

Power amplifying integrated circuit - MCP6C02 - Microchip Technology Inc. - current / voltage / common mode - image - 2
Power amplifying integrated circuit - MCP6C02 - Microchip Technology Inc. - current / voltage / common mode - image - 3
Add to favorites
Compare this product


Characteristics

Type
power, voltage, current
Other characteristics
common mode
Voltage

Max.: 5.5 V

Min.: 2 V

Current

Max.: 0.73 mA

Min.: 0.49 mA

Frequency

500 kHz

Description

The MCP6C02 high-side current sense amplifier provides input offset voltage correction for very low offset and offset drift. This device is offered with preset gains of 20, 50 and 100 V/V. The input common-mode range extends from 3V to 65V, and the power supply operating voltage is from 2V to 5.5V. Product Features Zero-drift architecture Bidirectional or unidirectional operation Maximum offset less than 16 µV Maximum offset drift less than 85 nV/°C Specified input common-mode range: 3V to 65V Enhanced EMI rejection Specified from -40 to +125°C (SOT-23 Package) Specified from -40 to +150°C (VDFN Package) Small 6-pin SOT-23 and 8-pin 3x3 VDFN packaging AEC-Q100 Qualified Grade 1: 6-pin SOT-23 package Grade 0: 8-pin VDFN package Parametrics CMRR Min (dB) - 132 Enhanced EMI Protection - Yes Gain (dB) - 20, 50, 100 Gain Error Max (%) - 1.6 Input Common Mode Voltage Max (V) Max V (volt) - 65 Input Common Mode Voltage Min dB (decibels) - 3 PSRR Min (dB) - 109 Vos Drift Max µV (microvolt) - 85 Vos Max µV (microvolt) - 16
