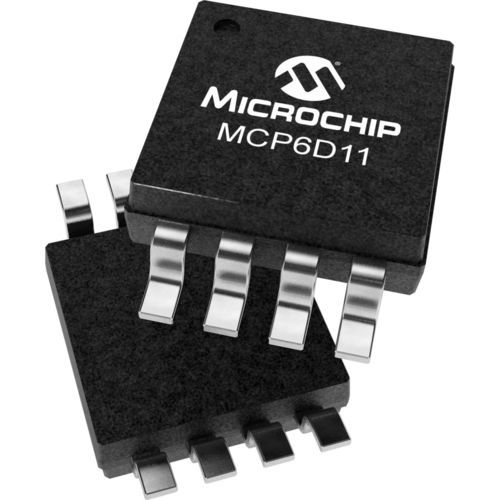

Power amplifying integrated circuit MCP6D11
voltagedifferentialhigh-speed

power amplifying integrated circuit
power amplifying integrated circuit
power amplifying integrated circuit
power amplifying integrated circuit
Add to favorites
Compare this product


Characteristics

Type
power, voltage
Secondary function
differential
Other characteristics
high-speed, low-noise, common mode
Voltage

Min.: 2.5 V

Max.: 5.5 V

Current

Min.: 1,400 A

Max.: 1,800 A

Frequency

90 MHz

Description

The MCP6D11 is a low-noise, low-distortion differential amplifier, optimized for driving high-performance, high-speed ADCs such as the MCP331x1D series. In addition to the low-noise and low-distortion, the MCP6D11 consumes only 3.5 mW of quiescent power on a supply. For power sensitive applications, a Power-Down pin reduces the power consumption to less than 13 uW. Product Features Low Power Iq of only 1.4 mA typical High Speed Gain-bandwidth product: 90 MHz Slew rate: 25 V/us Fast settling: 200 ns to 0.01% Easy to Use Low offset: 150 uV maximum Rail-to-rail output Input common mode range includes negative rail Power-down function Small Packages: 8-pin MSOP, 16-pin 3x3 QFN Extended temperature: -40 to +125C
