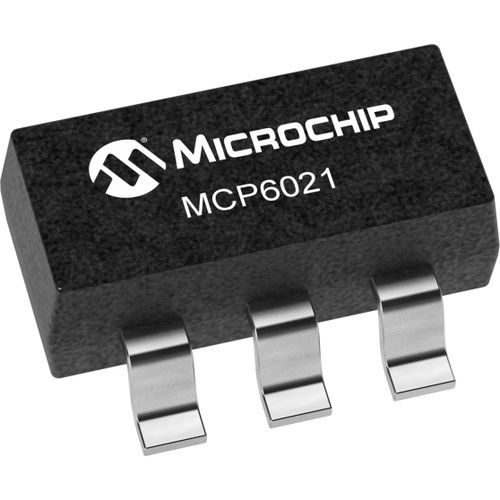

Current amplifying integrated circuit MCP6021
voltageoperationallinear

Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear
Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear
Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear - image - 2
Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear - image - 3
Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear - image - 4
Current amplifying integrated circuit - MCP6021 - Microchip Technology Inc. - voltage / operational / linear - image - 5
Add to favorites
Compare this product


Characteristics

Type
operational, voltage, current
Other characteristics
linear, high-speed
Voltage

Max.: 5.5 V

Min.: 2.5 V

Current

Max.: 0.14 mA

Min.: 0.1 mA

Frequency

10,000 kHz

Description

The MCP6021 operational amplifier (op amp) has a gain bandwidth product of 10 MHz with a low typical operating current of 1.0 mA and an offset voltage that is less than 0.5 mV. The MCP6021 provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6021 operates with a single supply voltage that can be as low as 2.5V, while drawing less than 1.35 mA of quiescent current. The MCP6021 is available in standard 8-lead PDIP, SOIC and TSSOP packages. AEC-Q100 Grade 1 qualification is available for this device Product Features Trimmed for Low Offset Voltage 10MHz Gain Bandwidth Product Rail-to-Rail Input/Output Unity Gain Stable Specified over the Extended Temperature Range Small 5-pin SOT-23 Package AEC-Q100 Grade 1 Parametrics CMRR Min (dB) - 74 Enhanced EMI Protection - No Input Voltage Noise Density (nV/rt(Hz)) - 8.7 PM (deg) - 65 PSRR Min (dB) - 74 # Per Package - 1 Slew Rate (V/µs) - 7 Vos Max µV (microvolt) - 250
